The accuracy of MRI in the diagnosis of anterior cruciate ligament injury

Mengou Zhao1, Ying Zhou1, Junru Chang1, Jie Hu1, Huixia Liu1, Shuhang Wang1, Donglei Si1, Yaqin Yuan1, Haiyan Li2

1Department of Computed Tomography and Magnetic Resonance, Shijiazhuang Third Hospital, Shijiazhuang, China; 2Department of Gynaecology, Shijiazhuang Third Hospital, Shijiazhuang, China

Contributions: (I) Conception and design: M Zhao, Y Zhou; (II) Administrative support: J Chang, H Li; (III) Provision of study materials or participants: M Zhao, Y Zhou, J Hu, H Liu, S Wang, D Si, Y Yuan; (IV) Collection and assembly of data: All authors; (V) Data analysis and interpretation: M Zhao, J Chang, J Hu, H Liu, S Wang, D Si, Y Yuan, H Li; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Mengou Zhao. Department of Computed Tomography and Magnetic Resonance, Shijiazhuang Third Hospital, 15 Tiyu Nan Street, Shijiazhuang, China. Email: zmo110975875@126.com.

Background: Anterior cruciate ligament (ACL) injury can cause damage to the meniscus and articular cartilage, and may even lead to osteoarthritis. This study aimed to analyze the accuracy and feasibility of magnetic resonance imaging (MRI) imaging signs in the diagnosis of knee joint ACL injury.

Methods: A total of 78 patients admitted to our hospital from June 2018 to October 2019 with highly suspected ACL injury were selected for this prospective study. We used MRI and arthroscopy to diagnose the ACL injuries, and the results of MRI and arthroscopy, as well as the value of MRI in diagnosing ACL injury, were compared.

Results: Among the 78 participants, 66 cases were diagnosed with ACL injury (28 with complete tear, 38 with partial tear), and 12 were normal according to arthroscopy. Among the 66 cases with ACL injury, 63 (95.45%) were confirmed by MRI detection. The sensitivity, specificity, and accuracy of MRI in the diagnosis of ACL injury were 95.45% (63/66), 91.67%, and 94.87%, respectively. The accuracy of MRI in the diagnosis of complete and partial tears were 92.86% and 94.74%, respectively. Among the four direct MRI signs of ACL injury, the differences in interruption of ACL continuity, thickening and edema, and abnormal walking were statistically significant (P<0.05). Among the 8 indirect MRI signs, all showed high specificity and low sensitivity, and which the specificity of posterior cruciate ligament index, Notch sign, meniscus exposure sign of posterior ankle, and lateral collateral ligament monolayer display showed higher specificity (P<0.05).

Conclusions: Examination with MRI offers high accuracy in the diagnosis of ACL injury, and has good consistency with arthroscopic diagnosis, which can provide reliable guidance for the selection and formulation of clinical surgery plans, and might be used as the first choice for the non-traumatic diagnosis of ACL injury.

Keywords: Anterior cruciate ligament injury; magnetic resonance imaging (MRI); arthroscopy; knee joint


Submitted Oct 18, 2020. Accepted for publication Dec 04, 2020.

doi: 10.21037/atm-20-7391


Introduction

The anterior and posterior cruciate ligaments are important parts of the knee joint, and have key roles in maintaining the stability of the knee joint (1). Anterior cruciate ligament (ACL) injury is caused by a violent forward impact on the upper back of the calf, and posterior cruciate ligament injury is caused by a violent backward impact on the anterior chamber of the upper leg. Clinically, ACL injuries are more commonly seen (2,3). Injury to the ACL can cause damage to the meniscus and articular cartilage, which in turn leads to osteoarthritis (4). The predominant cause of ACL injury is a sudden change in the direction of movement, which causes partial fiber bundle damage. Arthroscopy is a traditional diagnostic method used to identify ACL damage, and has a high sensitivity, but is an invasive examination (5). Recently, MRI examination has become a very effective non-invasive examination method for the diagnosis of ACL injury in clinic, and it can also display other lesions in the joint and determine the location and extent of ligament tear (6). Therefore, in this study, we selected 78 patients with highly suspected ACL injuries as the research participants, analyzed the accuracy of MRI in diagnosing ACL injuries, and compared it with arthroscopy to evaluate the clinical value of MRI in diagnosing ACL injuries. We present the following article in accordance with the STARD reporting checklist (available at http://dx.doi.org/10.21037/atm-20-7391).


Methods

General information

A prospective study was conducted on 78 patients admitted to our hospital from June 2018 to October 2019 who were highly suspected of ACL injury. Among the 78 patients, 55 were male and 23 were female, aged 21–59 years old, with an average age of 42.64±6.57 years old. Reasons for treatment included car accidents (n=7), hard object collisions (n=18), sports injuries (n=37), and sprains (n=16). The presenting clinical symptoms included knee swelling, slow movement, and restricted knee movement.

Participants were recruited to this study if they fulfilled the following inclusion criteria: (I) undertaking of both MRI and arthroscopy examination, and received treatment in our hospital; (II) no contraindications to MRI examination; (III) a clear history of trauma; (IV) complete imaging and clinical data; (V) no history of ipsilateral knee surgery.

Patients were excluded from this study if the following criteria were met: (I) obvious signs of osteoarthritis; (II) cochlear implantation; (III) a pacemaker, defibrillator, insulin pump, or indwelling catheter installed in the body; (IV) meniscus disease or developmental deformity (V) women who were either pregnant or lactating. This study was approved by the Shijiazhuang Third Hospital (No. 2020-10-15). All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013). And the informed consent was taken from all the patients.

MRI examination

The MRI examination was performed using a Philips Achieva 1.5T magnetic resonance scanner (Philips, Amsterdam, Netherlands). A knee joint flexible coil was selected to detect within a scanning range of 10 cm between the upper and lower gaps of the knee joint. The scanning sequence parameters was as follows: for proton-density-weighted imaging with fat saturation (PDWI-FS) sagittal position, a radiofrequency (RF) pulse repetition time (TR) of 3,000 ms, echo time (TE) of 31 ms, layer thickness of 4.0 mm, layer spacing of 0.8 mm, and field of view (FOV) of 180 mm × 320 mm were applied; for PDWI-FS coronal position, TR/TE was 3,000 ms/31 ms, layer thickness of 4.0 mm, layer spacing of 0.8 mm, and FOV of 180 mm × 320 mm; for T1WI sagittal position, TR/TE was 400 ms/31 ms, layer thickness of 4.0 mm, layer spacing of 0.8 mm, and FOV of 180 mm × 320 mm; for T2WI-FS horizontal axis position and fat suppression, TR/TE was 3,770 ms/79 ms, layer thickness of 5 mm, layer spacing of 1.0 mm, and FOV of 180 mm × 384 mm. For 3D-MEDIC (three-dimensional multi-echo combined imaging sequence), TR/TE was 40 ms/22 ms, with a layer thickness of 1.5 mm, and FOV of 150 mm × 384 mm. After the completion of the scan, image post-processing was performed, and the image of participants with ACL injury was reconstructed.

Arthroscopy

Arthroscopy was performed a week after MRI detection. The participant took the supine position, and after epidural anesthesia, an incision was made on the outside of the knee joint, and the tibial tubercle was incised in a straight line. During the procedure, the ACL was carefully observed, focusing on the area of the lesion shown by the MRI scan, and the probe was used to explore the area of suspected injury to avoid missed diagnosis.

Observation indicators

The MRI images were interpreted by two physicians using a double-blind method, including ≥1 senior attending physician. In the event of differing opinions, a consensus was achieved by discussion. Using arthroscopy results as the “gold standard” of the diagnosis of ACL injury, the sensitivity, specificity, and accuracy of MRI in diagnosing ACL injury were analyzed.

Statistical methods

The data in this study were statistically analyzed using SPSS 18.0 software (IBM Corp., Armonk, NY, USA). The measurement data were described as the mean ± standard deviation ( x ¯ ±SD ); the count data were expressed as a rate or composition ratio, and analyzed using the chi-squared (χ2) test. Results with P<0.05 were considered to be statistically significant.


Results

The sensitivity, specificity and accuracy of MRI in the diagnosis of ACL injury

Among 78 patients, 66 cases were diagnosed with ACL injury by arthroscopy detection, and the remaining 12 cases were identified as normal. Among the ACL injuries, 28 were complete tear, and 38 were partial tear. There were 63 cases diagnosed as ACL injury by MRI, which gave a detection rate of 95.45%. The sensitivity, specificity, and accuracy of MRI in the diagnosis of ACL injury were 95.45% (63/66), 91.67%, and 94.87%, respectively (Table 1).

Table 1
Table 1 Detection of ACL injury by MRI [n (%)]
Full table

Comparison of the diagnosis results of MRI and arthroscopy

By comparing the results of MRI and arthroscopy, it was found that the accuracy rate of MRI in the diagnosis of complete tear was 92.86%, and was 94.74% for partial tear (Table 2).

Table 2

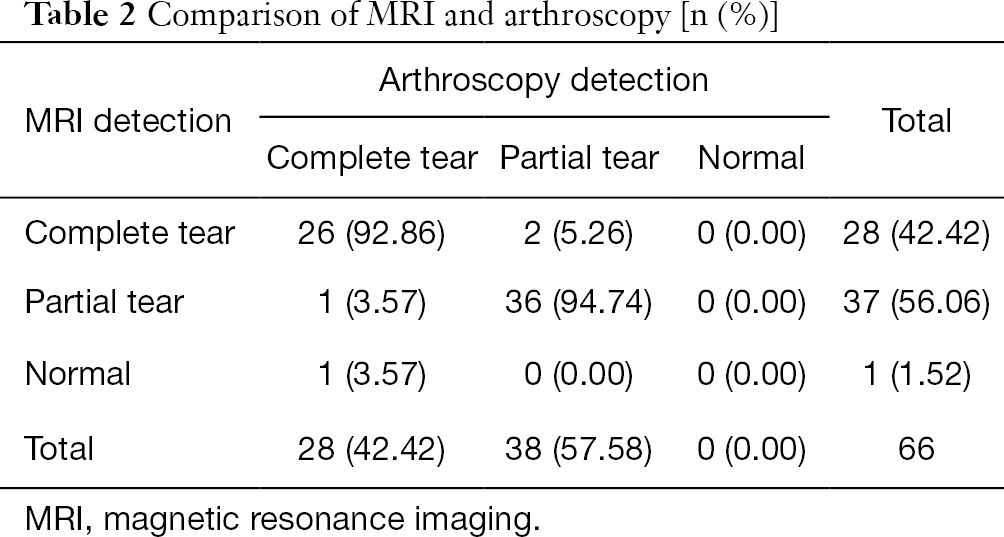

Table 2 Comparison of MRI and arthroscopy [n (%)]
Full table

Assessment results of direct MRI signs of ACL injury

Among the four direct MRI signs of ACL injury, the differences in interruption of ACL continuity, thickening and edema, and abnormal walking were statistically significant (P<0.05, Table 3).

Table 3
Table 3 Evaluation results of direct MRI signs of ACL injuries
Full table

Assessment results of indirect MRI signs of ACL injury

Among the eight indirect MRI signs of ACL injury, all of them had high specificity and low sensitivity. The indirect MRI signs of posterior cruciate ligament index, Notch sign, meniscus exposure sign of posterior ankle, and lateral collateral ligament monolayer display showed higher specificity (P<0.05, Table 4).

Table 4
Table 4 Evaluation results of indirect MRI signs of ACL injuries
Full table

Image analysis

After the MRI scan, patients with ACL injury and complete tear showed no continuity of ACL fibers and severed end contracture. There was obvious diffuse thickening and widening at the severed segment, and high signal at the T2WI position (Figure 1). A large amount of effusion signal could be seen in the joint cavity, with low signal at the T1WI position and high signal at T2WI position. In patients with partial tears, the ACL tear was partially swollen, and most of it was not obvious, with the T2WI signal higher than previously (Figure 2).

Figure 1 ACL rupture by MRI scanning in sagittal positions T1 and T2. ACL, anterior cruciate ligament; MRI, magnetic resonance imaging.
Figure 2 Partial injury in ACL by MRI scanning in sagittal positions T1 and T2. ACL, anterior cruciate ligament; MRI, magnetic resonance imaging.

Discussion

The ACL originates at the front of the inter-ankle carina of the tibia, slants backward, outward, and upward, and terminates at the medial and posterior sides of the lateral femoral malleolus. The functions of the ACL include restricting excessive forward movement of the tibia, hyperextension of the knee joint, rotation of the tibia, and knee extension (7,8). The ACL is at a special position in the knee joint, with highest vulnerability of all its parts. Once the ACL is damaged, it is difficult for the body to repair by itself. If the injury is not treated in time, it can cause tearing and degeneration of the knee joint meniscus, soft tissue, and other organs, eventually leading to osteoarthritis (9).

With unique characteristics and properties, ACL injuries of the knee joint are classified into contact and non-contact injuries according to whether an impact was involved. In addition, Sobue et al. (10) have classified ACL injury into simple ACL injury, ACL with medial structure injury, ACL with lateral structure injury, and ACL with medial and lateral structure injury. Injuries to the ACL mostly occur in the middle of the ligament, accounting for about 70%, followed by the 7 points of the femoral lateral malleolus (~9–20%), and then finally the tibial insertion (<10%) (11,12). Following ACL injury, patients will experience swelling of the knee joint, pain, and dysfunction, which impact seriously on their personal and work lives. Therefore, accurate diagnosis of ACL injury is of great significance to patients.

Examination with MRI is a kind of tomography, and also a kind of emission tomography; it can be imaged without radioisotope injection, which stands it apart from positron emission tomography (PET) and single-photon emission computerized tomography (SPECT) (13). There are many advantages to MRI, such as high spatial resolution, high soft tissue resolution, which can clearly display the overall structure of the knee joint, and facilitate clinical observation of the patient’s anterior and posterior cruciate ligament injuries (14). The hydrogen atoms in normal ACLs are fixed on the net frame composed of polypeptides and do not participate in MR imaging. Therefore, ACLs always exhibit banded low signals about 1 cm in width in each sequence (15). When injury occurs, the most intuitive manifestation is the change of ACL signal and the ability to walk. Due to the destruction of the peptide network structure and the accumulation of liquid, the ligament swells with diffused high signal, works abnormally, and may break, twist, or even disappear (16). The stability of the knee joint is destroyed with ACL injury, and the tibia will move forward, resulting in abnormalities in the shape and position of the meniscus and posterior cruciate ligament. These abnormalities can be used as indirect signs for the diagnosis of ACL injury (17,18).

In this study, a total of 63 cases were detected with ACL injury by MRI among the 66 ACL injury patients detected by arthroscopy. Among the direct signs, there were 5 with high specificity. Among the 5, the signs of interruption of ACL continuity, thickening and edema, and abnormal walking continuity of the ACL were more sensitive to diagnosis than other signs, and the most common sign was abnormal gait following the onset of ACL injury. Among the indirect signs, 8 showed high specificity with low sensitivity, indicating that all of the 8 indirect signs have certain diagnostic values. Although indirect signs cannot be used as a direct diagnostic basis for the determination of ACL injury, they can be used as an auxiliary basis for the diagnosis of ACL injury. Therefore, the combination of direct and indirect signs can effectively improve the accuracy of ACL injury diagnosis.

The arthroscope is a rod-shaped optical instrument with a diameter of ~5 cm to observe the internal structure of joints; it is an endoscope for the diagnosis and treatment of joint diseases (19). The internal structure of the joint can be directly observed through arthroscopy, and arthroscopy is the current “gold standard” for the diagnosis of ACL injury, with an accuracy rate as high as 100% (20). However, arthroscopy is invasive and presents certain risks to patients. Therefore, many patients are unwilling to accept this method when seeking diagnosis. The biggest difference between MRI examination and arthroscopy is that MRI is a non-invasive examination, has high resolution, high sensitivity, and high specificity for ACL injury diagnosis. The results of this study showed that the sensitivity of MRI in diagnosing ACL damage was 95.45%, and the specificity was 91.67%. Additionally, this study used MRI to diagnose ACL tears in patients with ACL injuries. The results showed that compared with arthroscopic detection, the accuracy of MRI in diagnosing complete and partial ACL tears was as high as 90%, indicating that the efficacies of MRI examination and arthroscopic investigation in diagnosing ACL injury are similar, and that the diagnostic results are consistent between the two methods. However, misdiagnosis by MRI examinations was present in this study, and may have been caused by hemorrhage and fluid accumulation around the ligaments following acute trauma. In addition, different scanning angles can also result in misdiagnosis.

In summary, diagnosis of ACL injury using MRI has high accuracy and good consistency with arthroscopic diagnosis. It can provide reliable guidance for the selection and formulation of clinical surgery plans, and can be used as the first choice for the non-invasive diagnosis of ACL injury.
