Construction of a predictive nomogram and bioinformatic investigation of the potential mechanism of postoperative early recurrence of hepatocellular carcinoma meeting the Milan criteria
Original Article

Construction of a predictive nomogram and bioinformatic investigation of the potential mechanism of postoperative early recurrence of hepatocellular carcinoma meeting the Milan criteria

Shuqi Zhang1^, Liangliang Xu1, Fuzhen Dai2, Peng Wang1, Jianchen Luo1, Ming Zhang1,3, Mingqing Xu1,4

1Department of Liver Surgery, West China Hospital, Sichuan University, Chengdu, China; 2Department of General Surgery, the First People’s Hospital of Longquanyi District, Chengdu, China; 3Department of General Surgery, Mianzhu Hospital of West China Hospital, Sichuan University, Mianzhu, China; 4Department of Hepatopancreatobiliary Surgery, Meishan City People’s Hospital, Meishan Hospital of West China Hospital, Sichuan University, Meishan, China

Contributions: (I) Conception and design: M Xu, M Zhang; (II) Administrative support: M Xu, M Zhang; (III) Provision of study materials or patients: S Zhang, L Xu, F Dai, P Wang, J Luo; (IV) Collection and assembly of data: S Zhang, L Xu; (V) Data analysis and interpretation: S Zhang, L Xu; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

^ORCID: 0000-0003-3786-3363.

Correspondence to: Mingqing Xu. Department of Liver Surgery, West China Hospital, Sichuan University, No. 37, Guoxue Lane, Wuhou District, Chengdu 610041, China. Email:

Background: Hepatectomy is the most common treatment for hepatocellular carcinoma (HCC) meeting the Milan criteria; however, postoperative early recurrence (PER) compromises the survival time. This study aimed to construct a predictive nomogram for PER of HCC patients within the Milan criteria. And the underlying mechanism related to PER may associate with the independent risk factors used to construct the nomogram, therefore, we preliminarily investigated the potential mechanism of PER using The Cancer Genome Atlas (TCGA) database to provide an idea for preventing PER.

Methods: Patients with HCC meeting the Milan criteria receiving hepatectomy in our center between 2009 and 2015 were enrolled. The clinical and histological data of all participants were collected. Follow-up was performed at outpatient and PER was defined as recurrence within 2 years after resection. All participants were randomly assigned to the training or validation cohort at a 4:1 ratio. A nomogram was constructed based on the independent risk factors in the training cohort. The accuracy and clinical utility of this nomogram were evaluated using the C-index, calibration plot, and decision curve analysis (DCA). The differentially-expressed genes (DEGs) between early-stage HCC patients with and without PER in TCGA database were identified. Enrichment analysis was performed to determine the potential relapse-related mechanism.

Results: The independent risk factors were alpha-fetoprotein (AFP) ≥400 ng/mL, gamma-glutamyl transpeptidase (GGT) ≥60 U/L, Glisson’s capsule invasion, microvascular invasion (MVI), and satellite lesions. The C-index value of the nomogram was 0.693 [95% confidence interval (CI): 0.632–0.754; P<0.001] in the training cohort and 0.658 (95% CI: 0.529–0.787; P=0.016) in the validation cohort. The calibration and decision curves demonstrated good accuracy and clinical utility of this nomogram respectively. 133 DEGs were identified and enrichment analysis showed the bile secretion pathway related to PER and two bile secretion pathway-related genes {ATP1A2 [P=0.027; hazard ratio (HR) =2.086, 95% CI: 0.916–4.749] and SLC5A1 (P=0.0016; HR =0.361, 95% CI: 0.145–0.898)} were significantly associated with disease free survival (DFS).

Conclusions: Our nomogram has satisfactory accuracy and clinical utility in predicting the PER of patients with HCC meeting the Milan criteria. Aberrant bile secretion may be an important mechanism of PER.

Keywords: Hepatocellular carcinoma (HCC); postoperative early recurrence (PER); nomogram; gamma-glutamyl transpeptidase (GGT); bile secretion pathway

Submitted Jun 16, 2022. Accepted for publication Jul 29, 2022.

doi: 10.21037/atm-22-3390


Hepatocellular carcinoma (HCC) is one of the most common malignant tumors. According to epidemiological statistics, HCC is the seventh most common tumor worldwide and the second leading cause of cancer-related deaths (1). With greater attention being paid to health examination and the development of imaging technologies, several advances have been made for the early diagnosis of HCC. Some cases of HCC diagnosed in the early stage meet the Milan criteria (one lesion ≤5 cm or three lesions all <3 cm without evidence of extrahepatic spread or macrovascular invasion). For this subset of HCC patients, the European Association for the Study of the Liver (EASL) and the American Association for the Study of Liver Diseases (AASLD) suggest radical methods such as hepatectomy, ablation, and liver transplantation (2,3). Due to the relatively high risk of recurrence following radiofrequency ablation and the rarity of liver donation, hepatectomy is still the main therapeutic option for patients with HCC meeting the Milan criteria.

Unfortunately, a previous study showed that the incidence of recurrence of early-stage HCC (Barcelona Clinic Liver Cancer stage 0/A) was almost 50–70% within 5 years after radical hepatectomy, and most cases of recurrence occurwithin 2 years post-hepatectomy (4). Furthermore, recurrence shortens the overall survival (OS) of patients. To the best of our knowledge, previous studies primarily focused on the recurrence of liver cancer after resection and only preliminarily explored the factors affecting recurrence (5-7). Additionally, absent studies have concentrated on the postoperative early recurrence (PER) (within 2 years after liver resection) of HCC patients meeting the Milan criteria or have established a predictive model for PER and further discussed the mechanisms of the independent risk factors affecting recurrence (8-10). Therefore, it is necessary to establish an effective model to predict PER in HCC patients meeting the Milan criteria.

The Cancer Genome Atlas (TCGA) database contains the gene expression information of HCC and normal liver tissues. The corresponding clinicopathological information and follow-up results are also documented in this database. Herein, data downloaded from TCGA were used to preliminarily explore the mechanisms involved in the PER of HCC patients meeting the Milan criteria. We present the following article in accordance with the TRIPOD reporting checklist (available at



This retrospective study included patients who underwent hepatectomy in West China Hospital between January 2009 and May 2015 and were pathologically diagnosed with HCC. The study’s selection criteria: (I) cases involving tumors meeting the Milan criteria; (II) cases in which only liver resection was performed before recurrence; and (III) patients whose detailed clinical characteristics were well preserved. The exclusion criteria: (I) cases with incomplete follow-up information; and (II) patients with concomitant cholangiocarcinoma or other malignancies. In this study, all participants were divided into two groups at random: a training set (n=347, 80%) and a validation set (n=86, 20%). The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Research Ethics Committee of West China Hospital, Sichuan University, China (No. 2020/8). Individual consent for this retrospective analysis was waived.

Collection of clinical and pathological information

The demographic data including age and sex were collected and all participants in our study underwent comprehensive preoperative tests, including routine blood examination, routine coagulation tests, liver and renal function tests, hepatitis virus screening tests, and the screening of serum tumor markers [such as alpha-fetoprotein (AFP), etc.]. Three-phase enhanced computed tomography (CT) or magnetic resonance imaging (MRI) scans were also applied conventionally to evaluate the tumor characteristics. Additionally, intraoperative ultrasonography was performed during surgery to detect additional nodules that may have been missed during the preoperative imaging (11,12). Therefore, the clinical information involving demographics, blood test information, and tumor imaging data could be retrospectively collected.

Histological examination was also performed on the resected specimens. The pathological information included the tumor differentiation grade, cutting edge, satellite lesions, microvascular invasion (MVI), Glisson’s capsule invasion, and Ishak score. The Edmondson-Steiner classification criteria were applied to confirm the differentiation grade. A negative cutting edge implied that no cancer cells were found at the margins of the tumor tissue specimens. Satellite lesions meant that distinct nodules were found within 2 cm both in size and distance from the primary tumor. MVI was defined as the presence of a tumor that was visible only on microscopy in a hepatic vein, portal vein, or a large capsular vessel of the surrounding endothelium-lined hepatic tissue (13). Glisson’s capsule invasion signified that tumor cells invaded but did penetrate the liver capsule.


After discharge, follow-up was performed at 1-month postoperatively and then at 3-month intervals in the first 3 years and every 6 months subsequently. Laboratory examinations including routine blood tests, liver function tests, AFP, abdominal ultrasonography, and chest radiographs were performed. For cases in which suspicious lesions were found or AFP levels were elevated persistently, enhanced abdominal CT/MRI was performed immediately thereafter. Recurrence was diagnosed meeting the combined findings of these clinical examinations. It takes 2 years or more for adenomatous hyperplasia to develop into HCC (14), and therefore, PER was defined as recurrence within 2 years after liver resection. The endpoint of our study was measured until the date of death or the last follow-up visit.

Statistics analysis

The collected clinicopathological information in the training cohort was divided into categorical and continuous variables. SPSS software (version 26.0; IBM Corp., Armonk, NY, USA) was used for statistical analysis. Data were reported as mean ± standard deviation or frequency, as appropriate. Categorical variables were assessed by the Chi-square or Fisher exact test (as appropriate), while continuous variables were evaluated by the Student’s t-test, one-way analysis of variance, or the Mann-Whitney test (as appropriate). Furthermore, a univariate analysis was performed to explore the potential risk factors, and factors with a P value <0.05 in the univariate analysis were subsequently included in a stepwise multivariate analysis using a logistics model to identify risk factors that are independently associated with PER.

Receiver operating characteristic (ROC) curve analysis was conducted thereafter. The survival curve was constructed using the Kaplan-Meier method and compared using the log-rank test. The establishment of a nomogram was conducted using the rms package in R software version 4.1.2 (The R Foundation, Vienna, Austria; based on the independent risk factors in the training cohort. The total points for each patient were formulated using the above nomogram. Next, the total points were treated as a new risk factor to predict the possibility of PER for each patient. The predictive accuracy of the nomogram was evaluated using Harrell’s C-index; a bootstrap with 1,000 resamples was performed to reduce the biased estimates. The calibration curves were applied to illustrate the agreement between the nomogram-predicted and actual observed probability of recurrence. Validation of the nomogram was performed in the validation cohort using the same methods. Decision curve analysis (DCA) was performed using the rmda package in R software and was validated in the validation cohort. All statistical tests were two-tailed, and a P value <0.05 was considered statistically significant.

Bioinformatics analysis

Data related to HCC were downloaded from TCGA database ( Although there was no information on HCC conforming to the Milan criteria, the data included HCC within the American Joint Committee on Cancer (AJCC) stage T1 (single tumor lesion with a maximum diameter ≤2 cm or isolated tumor with a maximum diameter >2 cm without vascular invasion). Patients with AJCC stage T1 who received surgical treatment and did not receive any other treatment before surgery were included. The patients were divided into the PER and non-PER groups based on the recurrence time. The differentially-expressed genes (DEGs) between these two groups were then identified using the DESeq2 package in R software (version 4.1.2). Additionally, the potential molecular function and involved pathways of these DEGs were analyzed in KOBAS 3.0 (


Patient and tumor characteristics

A total of 433 patients who satisfied our inclusion criteria were analyzed in this study between 2009 and 2015. These patients were randomly assigned to training (n=347) and validation (n=86) cohorts at a ratio of 4:1. The detailed clinicopathological information of the enrolled patients is listed in Table 1. Most patients were male (male/female: 359/74), the median age of the patients was 51±11 years (range, 21–81 years), and only 109 patients were over 60 years of age. As shown in the preoperative image findings, the average diameter of the largest tumor was 3.4±1.0 cm around. The hepatitis B surface antigen (HBsAg) and hepatitis B e antigen (HBeAg) were detected in 389 patients (89.8%) and 78 patients (18.0%), respectively, and only eight patients (1.8%) were hepatitis B c antibody (HBcAb) negative.

Table 1

Basic clinical characteristics of the included patients

Clinical parameter Total (n=433) Training group (n=347) Validation group (n=86)
Gender, male/female 359/74 289/58 70/16
Age, years 51±11 51±11 50±11
Size, cm 3.4±1.0 3.4±1.0 3.2±1.0
Number, single/multiple 401/32 323/24 78/8
HBsAg, positive/negative 389/44 311/36 78/8
HBeAg, positive/negative 78/355 65/282 13/73
HBcAb, positive/negative 425/8 340/7 85/1
AFP, ng/mL 854.3±2,931.5 858.6±3,012.5 837.1±2,595.3
AFP ≥400 ng/mL, yes/no 118/315 92/255 26/60
WBC, 109/L 5.3±4.2 5.5±4.6 4.8±1.6
NEU, 109/L 3.2±3.2 3.3±3.6 3.0±1.3
LYM, 109/L 1.5±0.6 1.6±0.6 1.5±0.6
NLR 2.4±1.9 2.3±1.9 2.4±2.2
PLT, 109/L 117.2±48.8 117.8±50.0 115.3±44.8
PLR 84.5±44.9 83.5±41.7 88.7±56.4
MONO, 109/L 0.3±0.2 0.3±0.2 0.3±0.1
PT, s 12.1±1.2 12.1±1.2 12.0±1.3
INR 1.4±7.2 1.5±8.0 1.1±0.1
Fib, mg/dL 2.4±0.7 2.5±0.8 2.4±0.6
TB, μmol/L 15.5±6.9 15.2±6.9 16.4±7.2
ALT, U/L 50.9±50.5 49.5±46.7 56.9±63.5
AST, U/L 43.1±32.5 42.2±30.5 46.6±39.6
TP, g 69.7±6.8 69.4±7.1 70.8±5.4
ALB, g 42.0±4.3 41.7±4.4 43.1±3.6
GGT, U/L 62.0±81.4 61.8±75.4 62.9±102.3
GGT ≥60 U/L, yes/no 134/299 108/239 26/60
Creatinine, μmol/L 76.9±20.6 76.9±21.5 76.5±17.0
Anatomic resection, yes/no 218/215 173/174 45/41
Glisson’s capsule invasion, yes/no 177/256 138/209 39/47
Differentiation, I + II/III + IV 256/177 221/126 33/53
Cutting edge, positive/negative 4/429 4/344 0/86
MVI, yes/no 77/356 66/281 11/75
Satellite, yes/no 31/402 24/323 7/79
Cirrhosis, yes/no 329/104 255/92 74/12

Data were reported as mean ± standard deviation or frequency, as appropriate. HBsAg, hepatitis B surface antigen; HBeAg, hepatitis B e antigen; HBcAb, hepatitis B c antibody; AFP, alpha-fetoprotein; WBC, white blood cell; NEU, neutrophil; LYM, lymphocyte; NLR, neutrophil-lymphocyte ratio; PLT, platelet; PLR, platelet-to-lymphocyte ratio; MONO, monocyte; PT, prothrombin time; INR, international normalized ratio; Fib, fibrinogen; TB, total bilirubin; ALT, alanine transaminase; AST, aspartate aminotransferase; TP, total protein; ALB, albumin; GGT, γ-glutamyl transpeptidase; MVI, microvascular invasion.

A total of 401 patients had one lesion, while 32 patients had multiple lesions. The AFP levels were significantly increased in 118 patients (26.8%, ≥400 ng/mL) and gamma-glutamyl transpeptidase (GGT) levels are markedly elevated in 134 patients (30.1%, ≥60 U/L). Half of the patients underwent anatomic resection. According to the histological results, Glisson’s capsule invasion was observed in 177 patients (40.1%), and less than half of the patients (40.9%) had poorly differentiated tumors. MVI occurred in 77 patients, and 31 patients (7.2%) had satellite lesions. The survival curve showed that the OS time in the PER group was dramatically shorter than that in the non-PER group (P<0.001) (Figure 1); patients in the non-PER group had a median OS time of 102 months, while patients with PER had a median OS time of 43 months.

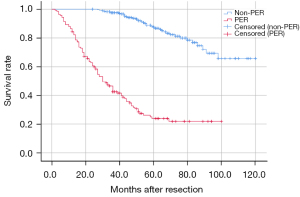

Figure 1 Kaplan-Meier estimates of the overall survival of patients with or without PER. PER, postoperative early recurrence.

Independent risk factors of PER in the training cohort

Univariate analysis showed that tumor size (P=0.018), serum AFP levels ≥400 ng/mL (P<0.001), GGT ≥60 U/L (P=0.016), Glisson’s capsule invasion (P=0.005), tumor differentiation (P=0.018), MVI (P=0.001), and satellite lesions (P=0.002) were significantly related to PER of HCC meeting the Milan criteria (Table 2). The multivariate analysis results showed that AFP ≥400 ng/mL [P=0.001, odds ratio (OR) =2.450, 95% confidence interval (CI): 1.460–4.110], GGT ≥60 U/L (P=0.034, OR =1.735, 95% CI: 1.043–2.885), Glisson’s capsule invasion (P=0.034, OR =1.699, 95% CI: 1.042–2.769), MVI (P=0.006, OR =2.266, 95% CI: 1.270–4.042), and satellite lesions (P=0.012, OR =3.203, 95% CI: 1.286–7.976) were the independent predictors of PER (Table 3).

Table 2

Univariate analysis of PER from the logistic regression analysis

Factors OR (95% CI) P value
Gender, male/female 1.109 (0.612–2.011) 0.733
Age, years 0.996 (0.977–1.015) 0.674
Size, cm 1.298 (1.045–1.613) 0.018*
Number, single/multiple 2.198 (0.955–5.061) 0.064
HBsAg, positive/negative 0.962 (0.462–2.001) 0.917
HBeAg, positive/negative 1.378 (0.787–2.411) 0.262
HBcAb, positive/negative 0.638 (0.140–2.898) 0.560
AFP, ng/mL 1.000 (1.000–1.000) 0.095
AFP ≥400 ng/mL, yes/no 2.806 (1.711–4.602) <0.001*
WBC, 109/L 0.980 (0.907–1.059) 0.616
NEU, 109/L 1.045 (0.96–1.137) 0.307
LYM, 109/L 0.885 (0.612–1.279) 0.515
NLR 1.013 (0.901–1.138) 0.830
PLT, 109/L 0.996 (0.992–1.001) 0.116
PLR 0.998 (0.992–1.003) 0.419
MONO, 109/L 1.217 (0.333–4.448) 0.766
PT, s 0.948 (0.769–1.168) 0.614
INR 0.963 (0.696–1.332) 0.818
Fib, mg/dL 0.937 (0.693–1.267) 0.671
TB, μmol/L 0.991 (0.958–1.024) 0.590
ALT, U/L 1.000 (0.995–1.005) 0.988
AST, U/L 0.999 (0.992–1.007) 0.860
TP, g 0.974 (0.943–1.006) 0.110
ALB, g 1.002 (0.952–1.054) 0.945
GGT, U/L 1.001 (0.999–1.004) 0.343
GGT ≥60 U/L, yes/no 1.796 (1.117–2.887) 0.016*
Creatinine, μmol/L 1.007 (0.997–1.018) 0.188
Anatomic resection, yes/no 1.347 (0.858–2.114) 0.195
Glisson’s capsule invasion, yes/no 1.923 (1.218–3.035) 0.005*
Differentiation, I + II/III + IV 1.744 (1.100–2.766) 0.018*
Cutting edge, positive/negative 2.090 (0.291–15.03) 0.464
MVI, yes/no 2.512 (1.453–4.345) 0.001*
Satellite, yes/no 3.827 (1.620–9.041) 0.002*
Cirrhosis, yes/no 1.315 (0.780–2.217) 0.305

*, statistical significance. PER, postoperative early recurrence; OR, odds ratio; HBsAg, hepatitis B surface antigen; HBeAg, hepatitis B e antigen; HBcAb, hepatitis B c antibody; AFP, alpha-fetoprotein; WBC, white blood cell; NEU, neutrophil; LYM, lymphocyte; NLR, neutrophil-lymphocyte ratio; PLT, platelet; PLR, platelet-to-lymphocyte ratio; MONO, monocyte; PT, prothrombin time; INR, international normalized ratio; Fib, fibrinogen; TB, total bilirubin; ALT, alanine transaminase; AST, aspartate aminotransferase; TP, total protein; ALB, albumin; GGT, γ-glutamyl transpeptidase; MVI, microvascular invasion.

Table 3

Multivariate analysis for PER from logistic regression analysis

Factors OR 95% CI P value
AFP ≥400 ng/mL 2.450 1.460–4.110 0.001*
GGT ≥60 U/L 1.735 1.043–2.885 0.034*
Glisson’s capsule invasion 1.699 1.042–2.769 0.034*
MVI 2.266 1.270–4.042 0.006*
Satellite 3.203 1.286–7.976 0.012*

*, statistical significance. PER, postoperative early recurrence; OR, odds ratio; AFP, alpha-fetoprotein; GGT, γ-glutamyl transpeptidase; MVI, microvascular invasion.

Following the logistics regression analysis, the present model was constructed to predict PER. The area under the curve (AUC) of the present model was greater than any single risk factor, and the AUCs of the present model, AFP ≥400 ng/mL, GGT ≥60 U/L, Glisson’s capsule invasion, MVI, and satellite lesions was 0.693 (P<0.001, 95% CI: 0.631–0.754), 0.605 (P=0.001, 95% CI: 0.54–0.671), 0.564 (P=0.051, 95% CI: 0.499–0.630), 0.579 (P=0.017, 95% CI: 0.515–0.644), 0.576 (P=0.023, 95% CI: 0.509–0.642), and 0.547 (P=0.155, 95% CI: 0.481–0.614), respectively (Figure 2). Maximum joint sensitivity and specificity (sensitivity =0.531, specificity =0.795) was achieved when the optimal cut-off value of the present model was 0.326, which was identified by the Youden index.

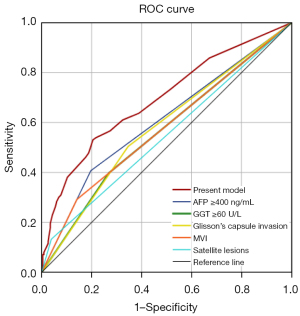

Figure 2 ROC analysis of the present model, AFP ≥400 ng/mL, GGT ≥60 U/L, Glisson’s capsule invasion, MVI, and satellite lesions. ROC, receiver operating characteristic; AFP, alpha-fetoprotein; GGT, γ-glutamyl transpeptidase; MVI, microvascular invasion.

Construction and validation of the nomogram for PER

Using the independent risk factors obtained by the multivariate analysis, a novel, easy-to-use, and effective nomogram model was constructed to predict the PER of HCC after hepatectomy meeting the Milan criteria (Figure 3). The elements of the nomogram involved five categorical variables (AFP ≥400 ng/mL, GGT ≥60 U/L, Glisson’s capsule invasion, MVI, and satellite lesions). The assessment was performed internally and measured using the C-index and calibration plots. The bootstrap-corrected C-index of the nomogram in the training cohort was 0.693 (95% CI: 0.632–0.754; P<0.001). The calibration curve of the training cohort demonstrated optimal agreement between the actual observed and nomogram-predicted probability of early recurrence after hepatectomy (Figure 4A).

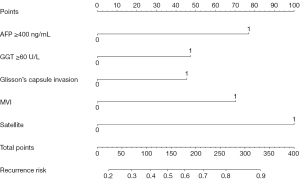

Figure 3 Nomogram for predicting PER of HCC patients meeting the Milan criteria. AFP, alpha-fetoprotein; GGT, γ-glutamyl transpeptidase; MVI, microvascular invasion; PER, postoperative early recurrence; HCC, hepatocellular carcinoma.
Figure 4 Calibration curves for predicting the PER after hepatectomy using the nomogram. (A) PER in the training cohort. (B) PER in the validation cohort. PER, postoperative early recurrence.

Furthermore, the performance of this nomogram was validated using an internal validation cohort. The total points for each patient in the validation cohort were formulated using the above nomogram. Thereafter, the total points were treated as a new risk factor, which was used to calculate the C-index and produce the PER calibration curves. The results showed that the C-index for the prediction of PER in the validation cohort was 0.658 (95% CI: 0.529–0.787; P=0.016). The calibration curve also showed favorable consistency between the predicted and observed probability of PER (Figure 4B).


DCA was used to evaluate the clinical utility of a diagnostic test while taking into account the subjective nature of risk (15,16). In this study, we developed the decision curves of the nomogram for predicting the possibility of early recurrence in the training and validation sets (Figure 5A,5B). The results indicated that the constructed model presented a notable clinical utility.

Figure 5 Decision curves of the present nomogram in the training (A) and validation (B) cohorts. The Y-axis represents the net benefit. The X-axis displays the threshold probability. The horizontal solid black line represents the hypothesis that no patients would experience the event, and the solid gray line represents the hypothesis that all patients would die or relapse.

Bioinformatics analysis

In TCGA database, a total of 131 patients within AJCC T1 were considered to have early-stage HCC. Among them, 43 patients had PER, while the remaining 88 patients did not. The DEGs between these two groups were analyzed, and the results showed that 133 genes were significant DEGs (log2FoldChange ≥1 or ≤−1, P<0.05) and the expression of these genes is shown in the heatmap (Figure 6A), including 57 up-regulated and 76 down-regulated genes. Kyoto Encyclopedia of Genes and Genomes (KEGG) enrichment analysis of these DEGs was performed (Figure 6B). As expected, multiple cancer-related pathways were enriched, such as the peroxisome proliferator-activated receptor (PPAR) signaling pathways, gastric cancer, and basal cell carcinoma. Notably, the bile secretion pathway, which contains ATP1A2 and SLC5A1, was also enriched. Also, bile secretion was closely associated with the GGT levels. As shown in Figure 6C, ATP1A2 was significantly down-regulated in the PER group, whereas SLC5A1 was significantly up-regulated.

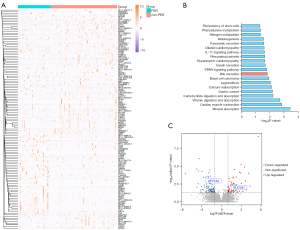

Figure 6 Investigation of the underlying mechanisms related to PER. (A) The heat map of DEGs between the groups with and without PER of AJCC stage T1 HCC after hepatectomy. (B) Signaling pathway enrichment analysis of DEGs associated with PER. (C) Volcano plot of DEGs associated with PER; ATP1A2 and SLC5A1 were found to be involved in the bile secretion item. PER, postoperative early recurrence; non-PER, none postoperative early recurrence; IL-17, interleukin-17; DEGs, differentially-expressed genes; AJCC, American Joint Committee on Cancer; HCC, hepatocellular carcinoma.

Moreover, patients in TCGA database were stratified into different groups according to the median expression values of ATP1A2 or SLC5A1. Survival analysis showed that patients with a high expression of ATP1A2 had worse disease-free survival (DFS) and OS rates following surgical resection (DFS, P=0.027, HR =2.086, 95% CI: 0.916–4.749; OS, P=0.028, HR =3.380, 95% CI: 1.172–9.752, Figure 7A,7B). Furthermore, low expression of SLC5A1 was significantly associated with DFS (P=0.0016; HR =0.361, 95% CI: 0.145–0.898) rather than OS (P=0.28; HR =0.536, 95% CI: 0.186–1.544) (Figure 7C,7D).

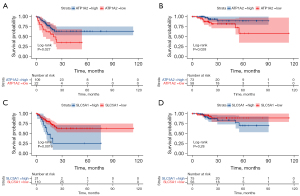

Figure 7 Kaplan-Meier estimates of the DFS (A,C) and OS (B,D) of the groups defined by the expression of ATP1A2 (A,B) and SLC5A1 (C,D). DFS, disease-free survival; OS, overall survival.


This study retrospectively analyzed the risk factors associated with PER in HCC patients meeting the Milan criteria. The univariate and multivariate analyses showed that the factors associated with PER included AFP ≥400 ng/mL, GGT ≥60 U/L, Glisson’s capsule invasion, MVI, and satellite lesions. Based on these factors, a novel predictive model was constructed for PER in HCC patients meeting the Milan criteria. The C-index of the predictive model in the training and validation groups were 0.693 and 0.658, respectively, which represents a good predictive ability. Additionally, based on the independent risk factors, clinical DCA was conducted and can better help clinicians to develop treatment strategies and carry out individual follow-ups after surgery.

AFP is a glycoprotein that is synthesized mainly by the yolk sac and embryonic liver and exists at very low levels in adult serum. Although AFP is closely related to the occurrence and development of a variety of tumors, including liver cancer or non-cancerous liver disease, it is still regarded as a significant marker for the screening and diagnosis of liver cancer (17). However, the mechanism remains unclear. A study has reported that AFP and AFP receptors are only expressed in AFP-positive HCC tissues but are not expressed in normal liver tissue and the serum of patients with AFP-negative HCC (18). Furthermore, another study has shown that AFP-positive HCC cells are in rich organelles, particularly the rough endoplasmic reticulum and mitochondria, and the Golgi’s complex can be observed in the cytoplasm (19), which is likely associated with the synthesis of proteins that promote metastasis and recurrence. Multiple previous studies have pointed out that an increase in the AFP value is a risk factor for postoperative recurrence and have shown that a high level of serum AFP is positively correlated with the recurrence and metastasis of human HCC (20-22). Patients whose preoperative AFP levels are ≥400 ng/mL may have a bad prognosis, and this could be an early signal for clinicians to enact measures to prevent early recurrence.

The Glisson’s capsule is the connective collagenous layer surrounding the liver parenchyma (23) and is a powerful barrier that protects against invasion by tumor cells or tissues. In numerous solid tumors, organ capsule invasion is associated with poor outcomes. In thyroid cancer, microscopic invasion of the thyroid capsule is associated with frequent vascular invasion, poor tumor size, and unsatisfactory prognosis. In lung cancer, invasion of the visceral pleural is an independent risk factor for worse prognosis in each tumor-node-metastasis (TNM) stage. Similarly, invasion of the liver capsule suggests that the tumor is likely to infiltrate into surrounding tissues, and indicates that the tumor has an excellent ability to invade, which likely leads to a high rate of PER and poor OS.

MVI is defined as the microscopic presence of tumor emboli in the hepatic vein, portal vein system, or lymphatic vessels. Many previous studies have found that the presence of MVI is closely related to the recurrence of HCC after hepatectomy (21,22,24). In this study, MVI was also found to be an independent risk factor for PER in patients with liver cancer according to the Milan criteria. This may be related to the fact that a tumor thrombus can easily metastasize through the portal vein system, leading to intrahepatic recurrence (25).

The high postoperative recurrence rate of HCC is partly attributable to the untreated satellite lesions that are too small to be detected on pretreatment imaging. Furthermore, the presence of satellite lesions may suggest a more aggressive biological feature of liver cancer, thus leading to PER. A previous study demonstrated that tumor differentiation was significantly associated with the prevalence of satellite lesions (26). Therefore, it is crucial to improve the preoperative detection rate of satellite lesions and to clarify the tumor stage, which could assist clinicians to take measures as soon as possible to reduce the incidence of PER.

Increased GGT levels are closely related to tumor occurrence, development, and prognosis. As reported in previous studies, GGT is associated with various tumors, including renal cell carcinoma, ovarian cancer, endometrial carcinoma, and esophageal squamous cell carcinoma (27-29). In this study, GGT ≥60 U/L was also found to be closely associated with the PER of HCC (P=0.033). With the incidence of liver cancer, intrahepatic obstruction leads to cholestasis, which can induce the liver to produce GGT. At the same time, the liver cancer cells themselves also synthesize GGT, and thus, the plasma GGT is significantly increased. Faber et al. found that increased preoperative GGT levels can reduce the cumulative survival rate of patients and is an independent risk factor for PER (30), and to the best of our knowledge, its specific mechanism has been rarely investigated.

Using the clinical information and gene expression of patients with HCC in TCGA database, we identified two bile secretion-related genes, SLC5A1 and ATP1A2, which were significantly aberrantly expressed in the PER group. Sodium/glucose cotransporter 1 (SGLT1), which is encoded by SLC5A1, is usually expressed in intrahepatic bile duct cells and is involved in bile secretion. When HCC occurs, the SGLT1 level in cancer cells is increased, which may be related to improving the tolerance of HCC to low glucose (31). The protein encoded by ATP1A2 belongs to the subfamily of sodium-potassium-ATPases (Na+/K+-ATPases). Na+/K+-ATPase is an integral membrane protein that is responsible for establishing and maintaining the electrochemical gradients of Na+ and K+ ions across the plasma membrane (28,32). Bile acid synthesis, transport, secretion, and enterohepatic circulation require a variety of Na+-dependent transporters (NTCP/mEH) (33-35). The significantly low expression of this gene in HCC cells affects the concentration of sodium and potassium ions both inside and outside of the cells, thereby affecting the functions of various transporters, which could result in the accumulation of bile acids in liver cells and bile ducts, and could result in a further increase in GGT (33-35). GGT is a glycosylated protein that is partially embedded in the surface of the plasma membrane and is involved in the synthesis and transport of intracellular glutathione (GSH) (32,33,36,37). The synthesized GSH can protect cells from the damage caused by oxidants in the metabolic process, thereby playing an important antioxidant and anti-inflammatory role. However, overexpression of GGT may break the balance between oxidation and anti-oxidation, which is responsible for promoting the development of tumors (38). Studies have shown that in HCC, increased GGT can promote the increase of GSH in liver cells, which is related to the drug resistance of HCC (39-41). In addition, GGT also plays a role in regulating cell proliferation and apoptosis, as well as cancer progression and invasion (39). Therefore, a significant increase in preoperative GGT may be a poor prognostic factor for HCC. Consequently, the low expression of ATP1A2 in liver cancer cells may increase GGT by affecting bile acid secretion, and then affect the antioxidant, drug resistance, progression, and invasion processes of tumor cells, ultimately resulting in a poor prognosis.

The present study had some limitations that should be noted. Firstly, this was a retrospective study, which may have involved some selective bias. Also, there was no comparison between the training and validation groups, and the baseline consistency between the two groups may affect the accuracy and effectiveness of the predictive model. Also, AJCC T1 stage HCC was not completely consistent with HCC according to the Milan criteria, and thus, the initially explored recurrence mechanism had certain limitations.


In this study, we identified that AFP ≥400 ng/mL, GGT ≥60 U/L, Glisson’s capsule invasion, MVI, and satellite lesions were independent risk factors for PER of HCC meeting the Milan criteria. We constructed a novel predictive model, which showed fair accuracy, calibration, and clinical utility. Furthermore, we came to a preliminary conclusion that the aberrant expression of two bile secretion-related genes (SLC5A1 and ATP1A2) likely promoted the PER of HCC according to the Milan criteria by increasing the level of GGT.


Funding: This study was supported by the Key Technology Research and Development Program of the Sichuan Province (Nos. 2021YFSY0009 and 2021YFS0106), and the Post-Doctor Research Project, West China Hospital, Sichuan University (No. 2020HXBH076).


Reporting Checklist: The authors have completed the TRIPOD reporting checklist. Available at

Data Sharing Statement: Available at

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Research Ethics Committee of West China Hospital, Sichuan University, China (No. 2020/8). Individual consent for this retrospective analysis was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See:
