A comprehensive characterization of alternative splicing events related to prognosis and the tumor microenvironment in lung adenocarcinoma

Shouzheng Ma1#, Jun Zhu2#, Mengmeng Wang3#, Tenghui Han4, Jianfei Zhu1, Runmin Jiang1, Tao Jiang1

1Department of Thoracic Surgery, Tangdu Hospital, The Fourth Military Medical University, Xi’an, China; 2Department of General Surgery, The Southern Theater Air Force Hospital, Guangzhou, China; 3Department of Drug and Equipment, Lintong Rehabilitation and Convalescent Centre, Xi’an, China; 4Department of Neurology, Xijing Hospital, Airforce Medical University, Xi’an, China

Contributions: (I) Conception and design: T Jiang, S Ma, J Zhu, M Wang; (II) Administrative support: None; (III) Provision of study materials or patients: None; (IV) Collection and assembly of data: T Han, J Zhu, R Jiang; (V) Data analysis and interpretation: S Ma, J Zhu, M Wang; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

#These authors contributed equally to this work.

Correspondence to: Tao Jiang. Department of Thoracic Surgery, Tangdu Hospital, The Fourth Military Medical University, Xi’an, China. Email: Jiangtaochest@163.com.

Background: Alternative splicing (AS) is a critical mechanism of post-transcriptional regulation and has been widely reported to be associated with the tumor progression and tumor microenvironment (TME) formation. However, the role of AS in lung adenocarcinoma (LUAD) has not been clearly elucidated. This study presents a comprehensive analysis exploring the impact of AS on prognosis and TME in LUAD.

Methods: The gene expression transcriptome profiles and survival data were obtained from The Cancer Genome Atlas (TCGA) database, and the splicing profiles were obtained from the TCGA SpliceSeq database. Base on prognostic AS events, a prognostic signature was constructed using Least Absolute Shrinkage and Selection Operator (LASSO) regression followed by multivariate Cox regression analysis. Survival outcomes was analyzed using the Kaplan-Meier method and the predictive performance of the signature was evaluated using receiver operating characteristic (ROC) curve analysis. Furthermore, the landscape of the TME was assessed by ESTIMATE, Microenvironment Cell Population (MCP)-counter, and single-sample Gene-Set Enrichment Analysis (ssGSEA) algorithms.

Results: A total of 127 prognostic AS events with P value <0.001 from 89 genes in LUAD were confirmed. A prognostic signature was constructed based on 20 prognostic AS events. Kaplan-Meier survival analysis demonstrated that higher risk scores were associated with poorer overall survival (OS). The area under the ROC curve of risk scores predicting the 1-, 3-, and 5-year survival probability were 0.791, 0.847, and 0.832, respectively. Furthermore, significant relationship was observed between the prognostic signature and the landscape of the TME. High-risk patients had lower stromal/immune scores, higher tumor purity, and significantly decreased abundance of majority immune cells, and immune-related signatures (P<0.05). Finally, a potential regulatory mechanism of the AS events is displayed in a regulatory network.

Conclusions: This research highlights the prognostic value of AS events for patients with LUAD and provide new insight into the regulation of the TME by AS. Notably, AS may affect the patient’s prognosis by altering the TME. Our findings provide important guidance for the development of novel biomarkers and therapeutic targets in patients with LUAD.

Keywords: Lung adenocarcinoma (LUAD); alternative splicing (AS); prognosis; tumor microenvironment (TME)

Submitted Feb 15, 2022. Accepted for publication Apr 20, 2022.

doi: 10.21037/atm-22-1531


Currently, lung cancer is the leading cause of cancer incidence and cancer-related mortality in China (1) and in the world (2). Non-small cell lung cancer (NSCLC) accounts for approximately 85% of lung cancer diagnoses, and can be further subdivided into lung adenocarcinoma (LUAD), squamous cell carcinoma, and large cell carcinoma (3). LUAD is the most prevalent subtype and accounts for 50% of NSCLC (4). Although many opportunities exist for improving the treatment of LUAD, including novel immunotherapy, molecular targets, and antiangiogenic therapies, the prognosis of patients with LUAD is often poor due to late diagnosis, tumor heterogeneity, and a lack of understanding of the disease mechanisms. Indeed, the 5-year survival rate is approximately 15% (1,2). The lack of accurate clinical classification and prognostic assessment system is currently a major clinical problem in LUAD. Therefore, there is an urgent need to develop sensitive and effective biomarkers for diagnosis and prognosis prediction. Notably, the role of alternative splicing (AS) in LUAD prognosis and therapy prediction has been increasingly recognized (5).

AS is an essential mechanism in regulating biological systems, generating multiple messenger-RNA (mRNA) and protein isoforms, and is regulated by alternative splicing factors (SFs) (6). A previous study has indicated that more than 95% of human genes experience AS in physiological processes (7). Dysregulation of SFs can promote the emergence of numerous aberrant AS events in cancer (8,9), which may play an important role in driving the tumorigenesis and progression of malignancies by facilitating cell proliferation, apoptosis, invasion/metastasis, angiogenesis, and immune escape (10,11). Aberrant AS events are also believed to affect the effectiveness of cancer chemotherapy, targeted therapy, and/or immunotherapy (12,13). Exploration of aberrant AS events will help us better understand the underlying mechanisms of LUAD initiation and development, so as to further guide clinical practice. Furthermore, AS has emerged as a key event in the formation of the tumor microenvironment (TME) (14,15).

The TME is a complex system containing endothelial cells, fibroblasts, pericytes, structural components, and infiltrating immune cells (16,17), all of which impact tumor development, invasion, and metastasis (18). Emerging evidence has demonstrated that the TME components can modify the immune phenotypes of tumors and therefore affect the patient’s prognosis (19-21). For instance, cancer associated fibroblasts play a direct immunosuppressive mechanism (21), whereas cytotoxic immune cells promote antitumor immune responses (19). Due to the important role of the TME in malignancies, assessment of the heterogeneity of the TME may effectively predict therapeutic benefits and prognosis for patients. Previous studies have shown that AS events can better predict prognosis and guide treatment by reflecting modifications in the TME, including in gastric cancer (22), colorectal cancer (23), and glioblastomas (24). However, few studies have focused on the effect of AS on the TME in LUAD.

The purpose of this study was to explore the prognostic value of AS by integrated bioinformatics analysis and to understand the potential relationship between AS and the TME characteristics. Firstly, a novel prognostic signature based on the prognostic AS events was constructed and further validated by Kaplan-Meier (K-M) survival curves and receiver operating characteristic (ROC) curves. Furthermore, the correlation between this prognostic signature and the TME was assessed through several different algorithms. Finally, a potential SFs-AS regulatory network was established to explore the regulatory mechanisms of AS events in LUAD. This study may contribute to the accurate prognosis of LUAD and provide insights into the development of novel therapeutic targets. We present the following article in accordance with the TRIPOD reporting checklist (available at https://atm.amegroups.com/article/view/10.21037/atm-22-1531/rc).


Data collection and processing

The research design and procedures were overviewed in Figure 1. The gene expression profiles and survival data of patients with LUAD (n=486) were extracted from TCGA database (https://www.cancer.gov/). The AS events and their percent-splice-in (PSI) values of patients with LUAD (n=513) were obtained from the TCGA SpliceSeq database (https://bioinformatics.mdanderson.org/TCGASpliceSeq) (25), and the PSI values (ranging from 0 to 1) were applied to quantify the likelihood of each AS events (26). To ensure the accuracy of the AS events, a portion of samples with PSI values <75% was excluded from further study. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

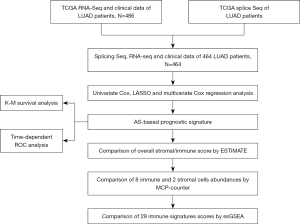

Figure 1 A flow diagram of the data and analyses presented in this study. TCGA, The Cancer Genome Atlas; LUAD, lung adenocarcinoma; K-M, Kaplan-Meier; LASSO, least absolute shrinkage and selection operator; AS, alternative splicing; ROC, receiver operating characteristic; MCP, microenvironment cell population; ssGSEA, single-sample gene-set enrichment analysis.

Identification of prognostic AS events and construction of a prognostic signature

Prognostic AS events were identified by univariate Cox regression analyses, and AS events with P value <0.001 were incorporated for further studies. AS events were visualized by Upset plots using the ‘UpSet’ R package (v1.3.3). Volcano and bubble plots were graphed to show each type of prognostic AS events. Least Absolute Shrinkage and Selection Operator (LASSO) regression was performed to screen the robust prognostic AS events using the ‘glmnet’ R package (v3.0-2), and these AS events were eligible for inclusion in subsequent multivariate Cox regression model. Finally, the following AS prognostic signature was constructed: Risk score=inPSIi*βi, where β represents the regression coefficient of each AS event.

Evaluation of prognostic signature

To evaluate the accuracy of the survival analysis, 22 patients with incomplete survival or clinical data were excluded and finally, 464 patients with LUAD were included. These 464 LUAD patients were classified into high- and low-risk groups using the median risk score as a cutoff. Kaplan-Meier survival curves were plotted with ggsurvplot from the ‘survminer’ R package (v0.4.6). The time-dependent ROC curve was constructed and the area under the curve (AUC) value was calculated using the ‘timeROC’ R package (v0.4) to assess the prediction accuracy of the prognostic signature.

Identification and analysis of the TME

The Estimation of Stromal and Immune cells in Malignant Tumor tissues using Expression data (ESTIMATE) algorithm (27) was applied to analyze the overall stromal and immune components and tumor purity for each LUAD sample using ‘ESTIMATE’ R package (v1.1.0, https://bioinformatics.mdanderson.org/estimate/rpackage.html). The immune score or stromal score was calculated to represent the amount of overall immune or stromal components in the TME. The ESTIMATE score is the sum of the immune score and the stromal score, and represents the comprehensive proportion of both components in the TME. Tumor purity was defined as the percentage of malignant cells in a solid tumor sample. Differences in stromal, immune, and ESTIMATE scores and tumor purity between the two groups were visualized using violin plots.

The Microenvironment Cell Population (MCP)-counter algorithm (28) was applied to determine the absolute abundance of 8 immune cell types [including T cells, CD8 cells, natural killer (NK) cells, myeloid dendritic cells, cytotoxic lymphocytes, B lineage, monocytic lineage, and neutrophils], endothelial cells, and fibroblasts in LUAD tissues from transcriptional data. Differences in the abundance of cell populations between the two groups were visualized using boxplots. Additionally, the correlation between cell abundance and risk score was determined by Spearman rank correlation coefficient.

The single-sample Gene-Set Enrichment Analysis (ssGSEA) algorithm (29) was applied to calculate the immune signature score, implemented in the ‘GSVA’ R package (v1.34.0, https://bioconductor.org/packages/release/bioc/html/GSVA.html). As an extension of Gene-Set Enrichment Analysis (GSEA), ssGSEA evaluates the enrichment score of a specific gene set in every single sample (30). A total of 29 immune signature-specific gene sets derived from a published report (31) were included in this study, and the differences in the immune signature scores between the two groups were visualized using boxplots.

Establishing the SFs-AS regulatory network

To explore the regulatory mechanisms of AS events, a SFs-AS regulatory network was constructed. The SFs data was obtained from the SpliceAid2 database (http://www.introni.it/splicing.html), including 404 SFs (available online: https://cdn.amegroups.cn/static/public/atm-22-1531-1.xlsx) from a previous study (32). The SF gene expression profile of LUAD patients was extracted from TCGA RNA-seq data. Pearson correlation analysis was applied to assess the correlation of SFs and PSI values of prognostic AS events with correlation coefficient >0.5 and P value <0.001, and the regulatory network was generated in Cytoscape (v3.8.0).

Statistical analysis

All statistical analyses were performed via R software (version 4.1.1, www.r-project.org). Differences in classified data were examined by Chi-square or Fisher’s exact test, and differences in continuous data were assessed by Mann-Whitney U test between high-risk group and low-risk group. Survival analysis was performed using log-rank tests. In all hypothesis tests, a two-sided P value <0.05 was considered statistically significant. Univariate and multivariate Cox regression analyses were performed using the ‘survival’ R package (v2.41.3).


Basic clinical characteristics and integrated AS events in lung adenocarcinoma

The profile of integrated AS events for 572 LUAD patients was extracted from TCGA SpliceSeq database, including 513 LUAD tumor samples and 59 corresponding normal samples. The gene expression profiles and the clinical phenotype data was obtained from TCGA database for 484 LUAD patients, excluding 22 patients with incomplete survival data. Finally, a total of 464 patients with complete splicing sequence, RNA sequence, and survival data were included in this study. The detailed information for this cohort was summarized in website: https://cdn.amegroups.cn/static/public/atm-22-1531-2.xlsx.

The integrated AS events profile was analyzed for all LUAD patients, and a total of 20,733 AS events from 10,005 genes were identified under the stringent filtering criteria. These AS events were classified into seven different splicing patterns: alternate acceptor site (AA), alternate donor site (AD), alternate promoter (AP), alternate terminator (AT), exon skip (ES), mutually exclusive exons (ME), and retained intron (RI). The specific numbers and intersections of different types of AS events in LUAD was visualized in an Upset plot diagram (Figure 2A). Among all AS events, ES (n=6,619) was the most commonly occurring splicing pattern, and ME (n=214) was the least frequent. Notably, each type of AS events may occur multiple times within a single gene, and a single gene may have more than one type of splicing pattern. A total of 5,684 genes containing 2 or more types of AS events were detected in the LUAD samples.

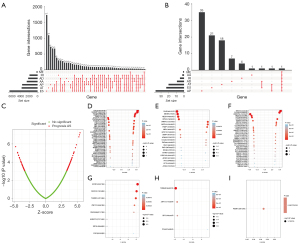

Figure 2 An overview of the AS events and prognostic AS events in LUAD patients. (A) The UpSet intersection diagram of seven types of AS events. (B) The UpSet intersection diagram of prognostic AS events (P<0.001). (C) The volcano plot of prognostic AS events (red dots). The green dots indicate AS events that are not related to survival. (D-I) Bubble graphs of all prognostic AS events based on (D) AP; (E) ES; (F) AT; (G) AD; (H) RI; and (I) AA. AS, alternative splicing; LUAD, lung adenocarcinoma; AP, alternate promoter; ES, exon skip; AT, alternate terminator; AD, alternate donor site; RI, retained intron; AA, alternate acceptor site.

Identification of prognostic AS events in LUAD

A total of 127 AS events (available online: https://cdn.amegroups.cn/static/public/atm-22-1531-3.xlsx) in 89 genes were confirmed to be survival-associated in the LUAD samples (P<0.001), and the intersections among these prognostic AS events was visualized in an Upset plot diagram (Figure 2B). AP, AT, and ES events accounted for almost 90% of all AS events, and no ME events were survival associated. In addition, several genes had multiple types of AS events, for example, AP and AT splicing patterns in FAM72A were all associated with clinical outcomes in LUAD patients. The AS events are summarized in a volcano plot (Figure 2C). The prognostic AS events from each subtype are displayed in Figure 2D-2I.

Construction and validation of a prognostic signature for LUAD

LASSO regression (Figure 3A,3B) was performed to filter variables and avoid overfitting of the signature. The following 20 AS events (Table 1) were adopted for a multivariate Cox regression analysis to constructed a prognostic signature, including BEST3|23330|AT, HNRNPLL|53258|AT, TTC39C|44852|AP, CA5B|98313|ES, MEGF6|315|ES, SNAPC5|31278|ES, MECOM|67568|AP, FNBP1|87886|ES, ABCC6|34219|AT, ZNF707|85481|AD, ZNF580|52121|AP, ETV1|78828|AP, UBAP1|86151|ES, PLEC|85511|AP, ZNF268|25345|ES, FAXC|99934|ES, APOB|52793|AT, PSMF1|58475|AA, ANAPC15|17570|AD, and POLM|79445|RI. The risk score of each LUAD patient was calculated based on the prognostic signature, and all patients were stratified into a low- or high-risk group according to the cutoff value of the median risk score.

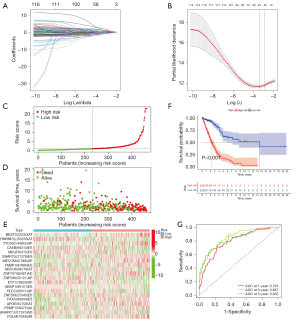

Figure 3 Construction and validation of the prognostic signature based on prognostic AS events in LUAD patients. (A) Lambda and (B) cvFit graph of the LASSO COX analysis. (C) The top section shows the risk score distribution curve, (D) the middle section shows patient survival state sorted according to the risk levels, and (E) the bottom section shows the differences in levels of prognostic signatures between high-risk and low-risk groups as a heatmap plot. (F) Kaplan-Meier curves of the prognostic signature for LUAD patients. (G) The 1-, 3-, and 5-year ROC curves for prognostic predictors. AS, alternate splicing; LUAD, lung adenocarcinoma; ROC, receiver operating characteristic.

Table 1

The prognostic signature identified by multivariate cox analysis

AS events coef HR HR.95L HR.95H P value
BEST3|23330|AT 1.2367 3.4442 1.1179 10.6119 0.0312
HNRNPLL|53258|AT −2.7518 0.0638 0.0063 0.6489 0.0200
TTC39C|44852|AP 0.8719 2.3915 0.9366 6.1064 0.0683
CA5B|98313|ES −0.7723 0.4620 0.1620 1.3169 0.1485
MEGF6|315|ES −1.2468 0.2874 0.1038 0.7957 0.0164
SNAPC5|31278|ES 3.5499 34.8110 1.5719 770.9016 0.0247
MECOM|67568|AP 1.8089 6.1036 1.6497 22.5826 0.0067
FNBP1|87886|ES 0.7399 2.0958 0.8365 5.2505 0.1143
ABCC6|34219|AT −1.8010 0.1651 0.0514 0.5302 0.0025
ZNF707|85481|AD 1.2666 3.5487 1.1690 10.7730 0.0254
ZNF580|52121|AP −0.9199 0.3986 0.1768 0.8985 0.0266
ETV1|78828|AP −2.0378 0.1303 0.0253 0.6712 0.0148
UBAP1|86151|ES −2.0564 0.1279 0.0298 0.5493 0.0057
PLEC|85511|AP −1.2916 0.2748 0.0543 1.3910 0.1185
ZNF268|25345|ES 1.9273 6.8709 1.7131 27.5567 0.0065
FAXC|99934|ES 2.8919 18.0274 4.1918 77.5282 0.0001
APOB|52793|AT 0.8648 2.3744 1.3553 4.1600 0.0025
PSMF1|58475|AA 4.5003 90.0445 1.5348 5282.6647 0.0303
ANAPC15|17570|AD −1.6290 0.1961 0.0751 0.5122 0.0009
POLM|79445|RI 1.8617 6.4348 1.7997 23.0082 0.0042

AS, alternative splicing; coef, regression coefficient; HR, hazard ratios.

The risk curve (Figure 3C) and scatter plot of the survival state (Figure 3D) suggested that patients with higher risk scores tended to have shorter overall survival. The differences in PSI values of the above AS events between the two groups was depicted in Figure 3E. The Kaplan-Meier curve (Figure 3F) illustrated that survival probability was significantly lower in the high-risk group compared to the low-risk group (P<0.001). The ROC curve (Figure 3G) demonstrated that the prognostic signature had a satisfactory prediction accuracy of LUAD patient prognosis, with an AUC of 0.791 at 1 year, 0.847 at 3 years, and 0.832 at 5 years, respectively.

Correlation between risk score and the TME

To explore whether the prognostic signature can reflect modifications of the TME in LUAD samples, correlation analyses between risk score and stromal/immune/ESTIMATE score, abundance of tumor-infiltrating immune cells (MCP-counter algorithm), and level of major immune signatures (ssGSEA algorithm) were performed. The ESTIMATE algorithm revealed that high-risk patients had significantly lower stromal, immune, and ESTIMATE scores (Figure 4A-4C). In addition, significantly higher tumor purity was observed in the high-risk group (Figure 4D).

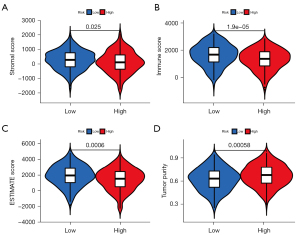

Figure 4 The differential analysis of the overall stromal and immune score between high-risk and low-risk groups by ESTIMATE. (A-D) Violin plots showing the differences in the (A) stromal score, (B) immune score, (C) ESTIMATE score, and (D) tumor purity between the two groups.

The MCP-counter algorithm results indicated that high-risk patients exhibited a significantly lower abundance of T cells, CD8+ T cells, B lineage, NK cells, myeloid dendritic cells, neutrophils, and endothelial cells. However, a higher abundance of fibroblasts was observed in the high-risk group (Figure 5A). Additionally, Spearman correlation analysis showed that the prognostic signature exhibited stable negative correlation with the abundance of T cells (R=−0.22), CD8+ T cells (R=−0.14), B lineage (R=−0.099), myeloid dendritic cells (R=−0.21), neutrophils (R=−0.21), and endothelial cells (R=−0.017; Figure 5B-5G). Additionally, the abundance of fibroblasts was positively correlated with risk scores (R=0.15; Figure 5H). There was no significant correlation between risk score and other cell populations (P>0.05).

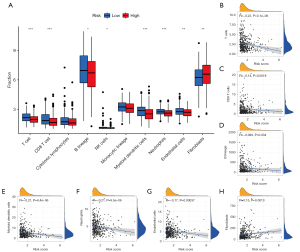

Figure 5 The differential analysis of immune cell infiltration between the low-risk and high-risk groups by Microenvironment Cell Population-counter. (A) A box plot showing the differences in the abundance of 8 immune and 2 stromal cell populations between the two groups. *P<0.05; **P<0.01; ***P<0.001. (B-H) Correlation analyses between risk score and the abundance of (B) T cells, (C) CD8 T cells, (D) B lineage, (E) myeloid dendritic cells, (F) neutrophils, (G) endothelial cells, and (H) fibroblasts.

The differences in the level of 29 immune-related signatures were compared between the 2 groups. As shown in Figure 6A, high-risk patients exhibited significantly lower levels of majority immune-related signatures, including mast cells, neutrophils, antigen-presenting cells (APC) co-stimulation, dendritic cells (DCs), immature DCs (iDCs), activated DCs (aDCs), plasmacytoid DCs (pDCs), tumor infiltrating lymphocyte (TIL), B cells, CD8+ T cells, T helper cells, T follicular helper (Tfh) cells, T cell co-inhibition, T cell co-stimulation, cytolytic activity, human leucocyte antigen (HLA) type II interferon (IFN-II) response, and immune checkpoint expression. However, there were no significant differences in the levels of tumor-promoting inflammation, para-inflammation, APC co-stimulation, macrophages, NK cells, T helper 1 (Th1), Th2, Treg, CCR, major histocompatibility complex (MHC) class I, nor IFN-I response (P>0.05). The levels of 29 immune-related signatures of each patient are displayed in a heat map (Figure 6B). The above results indicated that the prognostic signature can also act as an important indicator of the TME.

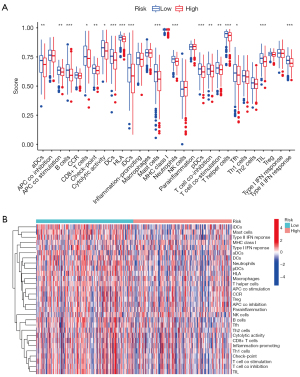

Figure 6 The differential analysis of immune signatures between the low-risk and high-risk groups by single-sample Gene-Set Enrichment Analysis (ssGSEA). (A) A box plot and (B) a heatmap showing the differences in the levels of the 29 immune signatures between the two groups. *P<0.05; **P<0.01; ***P<0.001. DC, dendritic cells; APC, antigen-presenting cells; HLA, human leucocyte antigen; Tfh, T follicular helper; TIL, tumor infiltrating lymphocyte.

Establishing the SFs-AS regulatory network

To explore the potential regulatory mechanism between SFs and prognostic AS events in LUAD, a regulatory network (Figure 7) was established based on the results of the Pearson correlation tests. A total of 32 SFs (blue dots) were identified which were significantly related to 27 prognostic AS events, including 11 high-risk AS events and 16 low-risk AS events (available online: https://cdn.amegroups.cn/static/public/atm-22-1531-4.xlsx). Among them, several AS events were associated with multiple SFs, such as NEK2|9717|AT, NEK2|9718|AT, and SYNJ2|78244|AP. Meanwhile, several SFs were associated with multiple AS events, such as PPM1G and RBM5.

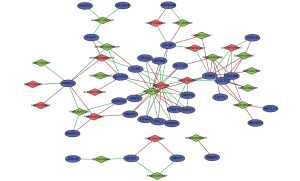

Figure 7 The splicing correlation network in lung adenocarcinoma (LUAD). The red dots represent high-risk prognosis alternative splicing (AS) events and green dots represent low-risk prognosis AS events. Splicing factors (SFs) are represented by the blue dots. The relationship between the percent spliced in (PSI) values of AS events and the expression of SFs is represented by a red line (positive correlation) or a green line (negative correlation).


In this study, we constructed a novel prognostic signature of LUAD based on 20 AS events and the robust performance was verified using K-M survival and ROC curve analyses. Furthermore, the correlation between this signature and the TME was assessed using several algorithms. Finally, a potential regulatory mechanism of AS events was explored.

Advances in next-generation sequencing technologies have gradually facilitated an understanding of the role of AS events in the development of cancers (33,34). Such roles include proliferation, invasion, and metastasis of tumor cells, as well as modification of the TME (35). The potential to use cancer-specific AS events as biomarkers for prognosis and treatment targets is gaining recognition (36,37). Recent studies have focused on exploring the prognostic value of AS events in malignancies such as colorectal cancer (38), breast cancer (39), hepatocellular carcinoma (40), and kidney cancer (41). LUAD is an aggressive tumor with increasing incidence and poor outcomes (42), and thus, the identification of biomarkers for diagnosis and therapy is urgently required. Li et al. recently identified prognostic predictors based on AS events with high performances for risk stratification in NSCLC patients (5). Cai et al. also established an AS-based prognostic model in LUAD patients (43). To further determine the ability of AS events to predict the prognosis of LUAD, we constructed a novel AS-based prognostic signature with a robust performance.

The TME plays a critical role in regulating tumor initiation and progression (44), which primarily consists of infiltrating stromal and immune cells. AS events may affect the outcomes of tumors by altering the TME, and few studies have focused on the effect of AS on the TME of LUAD. The current research further explored the differences in the TME among patients with different AS risk scores using several methods. First, we demonstrated that high-risk patients had lower stromal scores and immune scores, as well as higher tumor purity. Ma et al. found that LUAD patients with high stromal, immune, and ESTIMATE scores had better overall survival (P=0.066, P=0.0077, and P=0.0035, respectively) (45). Qu et al. showed a positive association between prognosis in LUAD patients and the immune and stromal scores (46). These findings indicated that poor prognosis of high-risk patients is closely related to the lower levels of infiltrating stromal and immune cells.

Our MCP-counter results revealed that the abundances of the majority immune cell types were significantly deficient in the high-risk group, including T cells, CD8 T cells, and B lineage cells that play a critical protective role in the adaptive immune response, as well as NK cells, myeloid dendritic cells, and neutrophils that play a vital role in the innate immune response. These findings indicated that the anti-tumor-related innate immunity and adaptive immune system of patients in the high-risk group were significantly suppressed. Apart from immune cells, stromal cells such as cancer-associated fibroblasts and endothelial cells, also play essential roles in regulating tumor progression (47). In this study, high-risk patients had a higher abundance of fibroblasts, which potentially related to a poor prognosis. Contrary to what we expected, the abundance of endothelial cells was lower in high-risk patients. This may be related to a higher proportion of functional tumor endothelial cells (TECs) (48).

The ssGSEA method was used to evaluate 29 major immune signatures in LUAD samples. Previous studies have shown that neutrophils and MCs are key players in innate immune responses (49,50), while DCs play a critical role in the crosstalk between innate and adaptive immunity through antigen processing and presentation (51). Low levels of neutrophils, DCs, MCs, and APC co-stimulation signature suggested that high-risk patients have not only impaired innate immune system but also weaken antigen presentation. Furthermore, B cells (52), Tfh cells (53), CD8+ T cells (54), Th cells (55), and IFN-II response (56) are major contributors to adaptive immune system, and low levels of these signatures suggested a severely impaired anti-tumor adaptive immunity in the high-risk group. Moreover, low levels of total TILs and cytolytic activity in the high-risk group further indicated the weaken anti-tumor effect, resulting in a poor prognosis of LUAD patients. In brief, high-risk patients are more likely to be accompanied by an inactive tumor immune microenvironment, which may contribute to poor prognosis.

There were some limitations to this research. First, the AS-based prognosis signature requires an additional independent patient cohort for external validation. Second, our research was based entirely on large-scale bioinformatics analysis, and further experimental validation is warranted.

In summary, we constructed an AS-based prognostic signature, using data from TCGA databases, which could effectively predict the survival of LUAD patients. Furthermore, we demonstrated that AS events could reflect modifications of the TME, which may be a crucial mechanism affecting the prognosis of LUAD patients. This work provided novel insights for the development of biomarkers and therapeutic targets in LUAD patients.


The authors would like to acknowledge the TCGA database for providing their platforms and those contributors for uploading their valuable datasets.

Funding: None.


Reporting Checklist: The authors have completed the TRIPOD reporting checklist. Available at https://atm.amegroups.com/article/view/10.21037/atm-22-1531/rc

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://atm.amegroups.com/article/view/10.21037/atm-22-1531/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
