Uterine fibroids are benign neoplasms of the uterus. It is more common in women between the ages of 30 to 50 years (1). In China, more than 20% of women over the age of 35 have uterine fibroids. The prevalence of uterine fibroids is about 11.21%, and the rate of malignant change is approximately 0.30% (2). In many patients, uterine fibroids are discovered during physical examination. Most of these uterine fibroids do not cause noticeable symptoms in the short term. Some uterine fibroids grow slowly or even stay unchanged for long periods, and these patients failed to seek early treatment or do not receive any treatment. Another subset of uterine fibroids can grow rapidly and trigger acute events within a relatively short period, such as anemia, pelvic pain, increased urinary frequency, and abdominal distension. The annual treatment costs of uterine fibroids are estimated at $6–34 billion in the United States, with similar high costs internationally (3).
The growth of uterine fibroids is affected by estrogen, luteinizing hormone (LH), and follicle-stimulating hormone (FSH) (4-7). High levels of hormones stimulate the rapid growth of fibroids in the uterus (8). Interestingly, uterine fibroids in postmenopausal women appear to shrink (9). Lipid metabolism in the body can also affect uterine fibroids (10). One Japanese case-control study found that the percent of body fat, but not the body mass index (BMI), is associated with a greater incidence of uterine fibroids (11). However, another study revealed that oral contraceptives were a risk factor for the incidence of uterine leiomyoma in Chinese women of childbearing age. The innate immune status also affected the growth of uterine fibroids (12). Naturally, there are still many unknown factors that affect the growth of uterine fibroids. This retrospective study analyzed patients' clinical characteristics with uterine fibroids and examined the growth ratio of uterine fibroids using a multivariate prediction model.
Clinical prediction models have become increasingly popular over recent years (13). As a quantitative tool for assessing risks and benefits, clinical prediction models can provide more objective and accurate information to aid doctors, patients, and health administrators (14). However, to date, there is currently no clinical model for predicting the growth of uterine fibroids. This study aimed to establish a predictive model to assist clinicians in assessing the growth of uterine fibroids. Our prediction model could identify patients with rapidly growing uterine fibroids from a cohort of single-fibroid asymptomatic patients. We present the following article in accordance with the TRIPOD reporting checklist (available at http://dx.doi.org/10.21037/atm-20-4559).
The study was conducted in accordance with the Declaration of Helsinki (revised in 2013) and was approved by the institutional research ethics committee of Huazhong University of Science and Technology Union Shenzhen Hospital. All accessed data were anonymized (ID: LW-2020-007). Due to the retrospective nature of the research, the requirement for patient informed consent was waived.
This was a retrospective multicenter study conducted at the following 6 institutions: The First Affiliated Hospital of Guangzhou Medical University, Huazhong University of Science and Technology Union Shenzhen Hospital, Shenzhen Shekou People’s Hospital, Shenzhen Nanshan Maternity and Child Healthcare Hospital, Southern University of Science and Technology Hospital, and Shenzhen Nanshan District Institute for Chronic Diseases Prevention and Treatment. The follow-up period was from 2013 to 2019.
Patients with a B-ultrasound diagnosis of uterine fibroids with no associated symptoms (such as pain), and 3 or more follow-up consultations over 1 year or more, were included in this study. The exclusion criteria included patients who had an acute event during the follow-up that required surgical treatment, FSH concentrations greater than 40 U/L; patients with incomplete clinical testing information in their follow-up data; and patients diagnosed with pregnancy or fatal diseases, such as cancer, during their follow-up period.
Basic patient clinical data, including ultrasound results and hematological tests, were collected. Basic clinical characteristics included ID that was used to queried multiple hospitalization information, age, and marital status were collated. The longest diameter and widest diameter of the uterine fibroid was collected from the ultrasound report. Location data of the fibroids were collected from ultrasound reports. Location-1 was defined as uterine fibroids detected in the intramural, subserosal, and submucosal regions. Location-2 was defined as uterine fibroids detected in the bottom, cervix, and body of the uterus. The uterine fibroid size was measured as the product of the longest diameter by the widest diameter. The patient’s age at the first follow-up and the last follow-up was documented. The average growth rate of uterine fibroids was measured as the change in size (mm2) in uterine fibroids during the follow-up period divided by the duration of the follow-up period (days). Hematological tests included levels of creatinine (Cr, µmol/L), eosinophil (EOS, 109/L), FSH (mIU/mL), HDL (mmol/L), LDL (low-density lipoprotein, mmol/L), LH (mU/mL), lymphocytes (109/L), monocytes (Monc, 109/L), neutrophils (Neut, 109/L), serum albumin (g/L), total cholesterol (TCHO, mmol/L), triglycerides (TRIG, mmol/L), lymphocyte to monocyte ratio (LMR), monocyte to neutrophil ratio (MNR), neutrophil to lymphocyte ratio (NLR), high-density lipoprotein to low-density lipoprotein ratio (HLR), and estradiol (E2, pmol/L).
Statistical analysis was performed using R software (version 3.6.3; http://www.R-project.org). Two-sided P<0.05 was regarded as statistically significant.
The classification of individual cases with positive growth was based on the growth ratio of uterine fibroids larger than 2.5 mm2/d. Since B-ultrasound measurement of uterine fibroids is not very accurate, a growth rate greater than 2.5 mm2/d was defined as significant growth. The patient characteristics were summarized using counts for categorical data and the mean for continuous variables. Multivariate logistic regression was used to explore the clinical and imaging characteristics against uterine fibroid growth. Reduced model selection was performed using a backward step-down selection process. The area under the curve (AUC) of the receiver operating characteristic (ROC) curve was used to quantify the prediction accuracy. A nomogram was developed to predict uterine fibroid growth using the regression coefficients of each predictor. In this process, each predictor's impact on uterine fibroid growth was weighted and converted to a numerical score. The individual numerical scores corresponding to each predictor were added to determine the total score. It was then translated to provide the predicted chance of uterine fibroid growth using a nomogram. The calibration curves, the C-index, decision curve, and clinical impact curve were used to evaluate the nomogram (15-17). A linear regression model was developed to predict uterine fibroids' growth rate by analyzing patients with an average growth rate greater than 2.5 mm2/day.
The clinical characteristics of the 19,840 patients diagnosed with uterine fibroids by ultrasound are shown in Table 1. The relationship between the number of cases and age is shown in Figure 1. Between 19 and 46 years of age, the number of cases increased with age. After 46 years of age, the number of cases decreased significantly with age. The size of the uterine fibroids was less than 5,000 mm2 in 97.35% of the patients. Following the inclusion and exclusion criteria, a total of 739 uterine fibroid patients were included in the study. The clinical characteristics of these patients are shown in Table 2. The mean (range) patient follow-up time was 948 (367–2,080) days. The location characteristics of the 739 patients diagnosed with uterine fibroids by ultrasound scan are shown in Table 3. The average growth rate of uterine fibroids in the negative growth group and the positive growth group was −0.43 and 0.98 mm2/d. Clinical factors significantly different in the 2 groups included age, FSH, LH, neutrophils, and NLR.
A predictive model for the growth direction of uterine fibroids

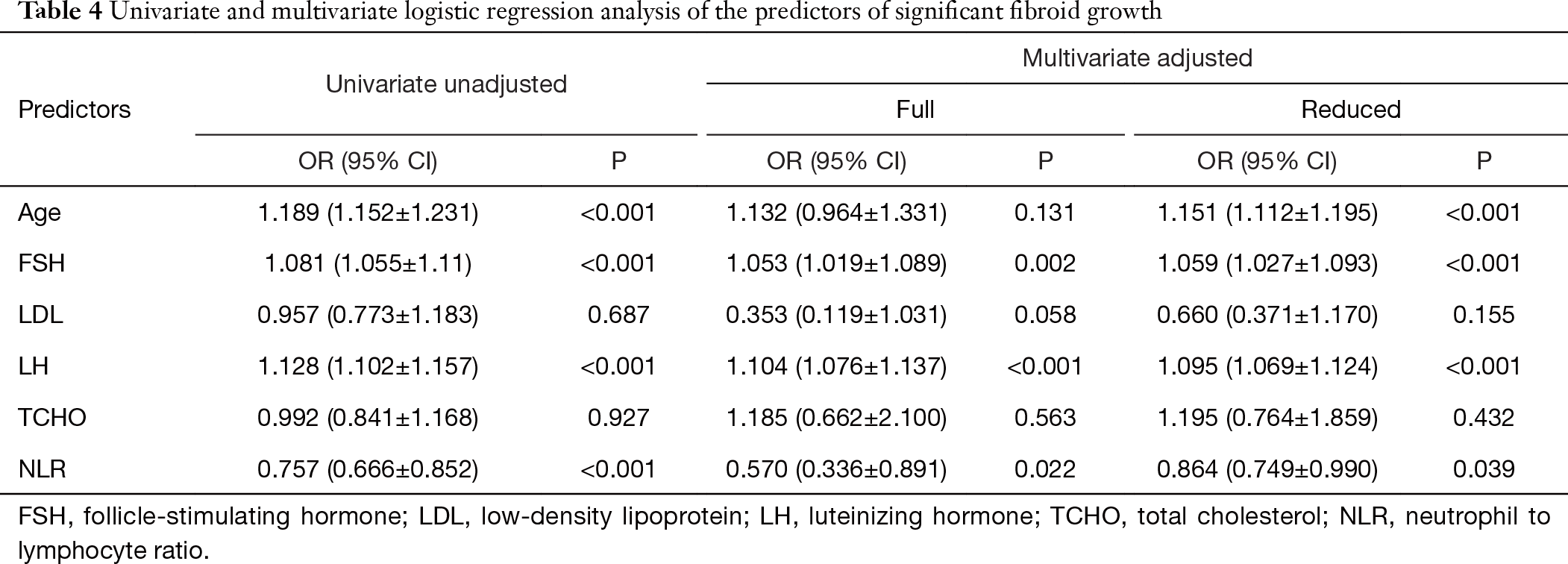

The endpoint event is a fibroid growth rate greater than 2.5 mm2/d. Table 4 shows the individual and joint predictive influence of various characteristics based on univariate and multivariate logistic regression. The following factors were associated with uterine fibroid growth: age, FSH, LDL, LH, TCHO, and NLR (Figure S1).
Stepwise multivariate logistic regression analysis identified six significant predictors for uterine fibroid growth in the study cohort, including age, FSH, LDL, LH, TCHO, and NLR (Table 5). A nomogram was developed using these six significant predictors to predict significant uterine fibroid growth (Figure 2). The sum of the corresponding scores in the six categories was calculated. An interpretation scale was built into the nomogram to assist physicians with translating the scores into the percent chance of positive growth. The total score reflects the chance of significant uterine fibroid growth. Patients with a high total score had a greater chance of significant uterine fibroid growth, while those with a low total score had a reduced chance of significant fibroid growth.
Evaluation of the predictive model for uterine fibroid growth
Figure 3A shows the ROC curve of the logistics model in the test data. The AUC was 0.8235, and the nomogram calibration plot demonstrated high reliability. The uterine fibroid growth was predicted using the model and the calibrated observations. The model showed the best fit when the uterine fibroids’ growth ratio was between 0% and 50%. When the uterine fibroids’ growth ratio ranged from 50% to 70%, the model overestimated the growth rate of uterine fibroids. When the predicted probability was greater than 70%, the model underestimated uterine fibroids’ growth rate (Figure 3B). The C-index for the prediction nomogram was 0.825 for the cohort, indicating that the model showed good discrimination. As shown in the decision curve, the predictions based on the nomogram were clinically useful if the threshold values in the approximate range of 0.1 to 0.9 were used to determine the treatment strategy. Additionally, the decision analysis curve showed that predicting patients with fast-growing uterine fibroids with a risk threshold of 0.1 to 0.9 potentially yielded a net clinical benefit (Figure 3C). The clinical impact curve shows the estimated numbers of patients deemed high risk and true positives in the range of 0 to 0.4 using our risk model (Figure 3D).
Linear regression prediction model for the uterine fibroid growth ratio
A linear regression model was developed to predict uterine fibroids’ growth rate in a population with significant growth (fibroid growth rate >2.5 mm2/d). In this cohort, 70% of patients were randomly selected as the training data, and the remaining 30% of patients represented the test data. By analyzing the information of the training data, a linear regression model was established (Table 6). The linear regression prediction model was used to predict the test data. The mean squared error (MSE) was 0.32, and the R-square value (coefficient of determination) was 0.79. The predicted values were distributed around actual values (Figure 4). The error of the linear regression prediction model was normally distributed (Figure 5).
The incidence rate of uterine fibroids is approximately 30% in women aged 30–50 years. Most women with uterine fibroids can be treated conservatively. However, some uterine fibroids can grow rapidly and cause acute adverse events. Therefore, in patients with asymptomatic fibroids, it is important to predict fibroids’ growth rate for follow-up and monitoring. This study constructed a predictive model to screen patients with asymptomatic single-onset uterine fibroids for possible rapid fibroid growth. The predictive outcomes provide an early warning to increase the frequency of monitoring, thereby reducing acute uterine fibroid events.
A retrospective analysis of clinical data from patients with uterine fibroids was performed. Logistic regression models were constructed to predict patients who were likely to have rapidly growing uterine fibroids (growth ratio >0.25 mm2/d). A linear regression model was constructed to predict the uterine fibroid growth rate for patients with potential rapid fibroid growth. Figure 1 is a flowchart for the predictive model. Data regarding age and the average FSH levels, LH, NLR, LDL, and TCHO, were collected. The logistic regression model was used to predict the growth of fibroids. If the prediction is negative, the patient is considered to have a slow-growing uterine fibroid. If the result is positive, the uterine fibroids are considered to have a faster growth rate. Patients with positive predictions from the logistic model can predict the myoma growth rate in a linear regression model. The linear regression model requires the collection of FSH, HDL, LH, TCHO, TRIG, and LMR values to predict the uterine fibroids’ growth rate. Physicians may recommend more frequent follow-up for patients with faster fibroid growth rates.
The uterine growth prediction model incorporated 6 factors, including age, FSH, LH, NLR, LDL, and TCHO. These 6 factors were included in the linear regression model to predict the uterine fibroid growth rate. FSH and LH are factors in both models, and these are currently recognized to have growth-promoting effects on uterine fibroids (18). Our model also suggested that these 2 factors positively affect the growth of uterine fibroids and growth rate. Other studies have suggested that estrogen may promote the growth of uterine fibroids (19). Growth hormone synergizes with estrogen to promote mitosis and fibroid growth. Researchers have also speculated that human placental lactogen synergizes with estrogen to promote fibroid growth (20). The current study found that the average estrogen concentration in the positive growth group was higher than that in the negative growth group. However, estrogen levels fluctuated widely, and no significant differences were found in the statistical analysis.
Age has a complex effect on the growth of uterus fibroids. Fibroids are rare in women younger than 20 years of age, but women aged 30–50 have a higher prevalence of uterine fibroids. After the age of 50 years, uterine fibroids may shrink (21). The age range in the logistic regression model was 20–55 years. Beyond this range, the influence of age on uterine fibroids appeared uncertain. Before the age of 20 and after the age of 50, hormone levels are significantly lower than during the childbearing years. Therefore, the uterus grows the fastest during the reproductive years.
The three factors HDL, TCHO, and TRIG, which are common to both models, are related to lipid metabolism. HDL carries cholesterol in surrounding tissues converted to bile acids or excreted directly from the intestine through bile. It can effectively reduce the concentration of TCHO and TRIG. The relationship between lipid metabolism and uterine fibroid growth is currently unclear (22-24). Some studies believe that fat accumulation leads to chronic inflammation, which can promote the growth of uterine fibroids (25). In our model, HDL was negatively correlated with the growth rate of uterine fibroids.
There were some limitations to this study. First, the number of patients with uterine fibroids was relatively small, and the results require further validation with a larger study cohort. Second, the mean follow-up time in this study was 948 days, and a longer follow-up time would further verify these results.
In this investigation, two complementary models were constructed to identify potential rapid fibroid growth in patients with a single asymptomatic uterine fibroid episode.
The data processing involved in this study was powered by the Network and Information Technology Department of Huazhong University of Science and Technology Union Shenzhen Hospital.
Funding: This work was financed by grants from the National Natural Science Foundation of China (No. 81971341).
Reporting Checklist: The authors have completed the TRIPOD reporting checklist. Available at http://dx.doi.org/10.21037/atm-20-4559
Data Sharing Statement: Available at http://dx.doi.org/10.21037/atm-20-4559
Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/atm-20-4559). The other authors have no conflicts of interest to declare.
Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013) and was approved by the institutional research ethics committee of Huazhong University of Science and Technology Union Shenzhen Hospital and the accessed data were anonymized (ID: LW-2020-007). Because of the retrospective nature of the research, the requirement for informed consent was waived.
Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
