Merkel cell carcinoma (MCC) represents an uncommon yet highly aggressive cutaneous neuroendocrine carcinoma. Its etiology and pathogenesis are mainly related to long-term excessive ultraviolet radiation exposure, together with infection with Merkel cell polyoma virus (1). In the elderly, MCC is frequently diagnosed in areas of sun-exposed skin and grows rapidly in these areas (2). In recent years, its incidence rate and mortality has significantly increased (3,4), which is expected to be approximately 3,284 cases per year in 2025 in USA (3).
For clinicians, it is both an important and a difficult task to predict MCC prognosis and advising reasonable treatment options. At present, the American Joint Committee on Cancer (AJCC) stage classification has been identified as an effective tool to define the prognosis of MCC and to suggest the tailored treatment options to patients. AJCC classification has long exerted a vital part in evaluating the tumor prognosis (5,6). The tumor stage classification system has been utilized for dividing patients into different risk groups, thus facilitating the assessment of clinical risks and the decision-making of clinical therapeutic strategy. However, the system has several limitations since only tumor size, histological metastasis and lymph nodes are considered (7,8). Some researchers have indicated that even within the same tumor node metastasis (TNM) stage, the survival of MCC patients may differ (9,10). While some other researchers suggested that the non-adjustment for sex- and age-matched life span in the overall survival (OS) possibly affected the creditability of this system (11). In addition, it is also reported that sex, ethnicity, the age of diagnosis, marital status, surgical interventions, adjuvant chemotherapy and radiotherapy significantly affect the survival of MCC patients. The AJCC classification system has been extensively adopted to predict patient prognosis. It is both important and difficult for clinicians to predict the prognosis of MCC and advise reasonable treatment options. After the possible AJCC classification system-based analysis was completed, we tried to develop effective prediction tools based on the existing stage systems, which will enable the early diagnosis of patients, and predict clinical outcomes and personalized treatments.
Nomograms are the graph-based representation of the results of the statistical prediction model, which makes it possible to quantify the prediction probability of clinical events of each patient (12). Nomograms are reliable and convenient tools for identifying positive and negative prognostic factors, which have been widely used in clinical practice to successfully predict the survival rate of cutaneous malignancies, like malignant melanoma and squamous cell carcinoma (13,14).
As far as we know, there has been seldom study about nomograms in MCC prognosis prediction. This work aimed to establish and validate the nomograms based on the Surveillance, Epidemiology, and End Results (SEER) database, and incorporated various prognostic factors, which determined how diverse parameters affected the survival rate and visualized outcomes predicting individual patient survival. We presented the following article in accordance with the TRIPOD reporting checklist (available at http://dx.doi.org/10.21037/atm-20-4578).
Data source as well as inclusion criteria
In this study, the latest version of SEER (8.3.5, https://SEER.cancer.gov/) was applied in reviewing patient information in SEER database (covering 18 registries). The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). Since individual information has been removed from all the SEER databases, informed consent from patients and approval by the institutional review board were exempted. The patient inclusion criteria were as follows: (I) age >18 years; (II) all data contained ICD-O-3 histologic type (8247/3), and primary site code (44.0–44.9) was used for MCC; (III) all data had been classified by the New 8th Edition AJCC stage System; (IV) active follow-up with stage, surgery, tumor size, lymph node, and marriage; (V) patients in the cohort confirmed from 2004 to 2015. Patients conforming to the following conditions were excluded: (I) unknown stage information; (II) unknown surgery information; (III) unknown tumor size; (IV) unknown lymph involvement information; (V) unknown ethnic information; (VI) no information about marriage at diagnosis; (VII) primary site was not on skin. After selection, 3,688 eligible patients were included in analyses (flow diagram was shown in Figure 1). Patient demographic variables included age, sex, race, and marriage. In addition, the pathological stage (T/N/M, derived AJCC, eighth edition) of patients was included. The size of tumor was categorized into ≥2 or <2 cm. Lymph nodes were classified as lymph involved or no lymph involved. Treatments included surgery, radiotherapy, and chemotherapy, which were further classified into two categories: “yes” and “no/unknown”.
Statistical analysis and nomogram construction
The entire whole in the present work was randomized as two groups, including 1,844 (50%) in the training cohort while 1,844 (50%) in the validation cohort. At diagnosis, the age of a patient and survival time (months) were expressed as mean ± SD or median and distributed appropriately (25th–75th percentile). Continuous variables were analyzed by Mann-Whitney test, whereas categorical variables were compared by chi-square test. Univariate and multivariate Cox proportional hazards regression was performed to assess factors related to patient survival.
The primary endpoint in our research was 3-year cancer-specific survival (CSS). The CSS was calculated after classification according to MCC characteristics, especially referring to people who die of MCC. Death due to additional causes may be the competitive event for MCC death. Therefore, the competing risk nomogram was built for predicting CSS (time period between MCC diagnosis and MCC-related death). Cumulative incidence function (CIF) depicted the accumulated occurrence probability of a certain event, when the competing events were also taken into consideration (15). The accumulated incidences of the interested events were fitted through designing the Fine-Gray model (16).
In univariate analysis, the variables related to CSS (P<0.2) were further assessed with a multivariate Cox regression analysis based on proportional subdistribution hazard models. The independent variables with important clinical value were used to construct the nomogram of CSS.
The secondary endpoint in our research was 3-year OS. OS represented the duration from the date of diagnosis to the date of death or last follow-up. In multivariate analysis, we included variables based on the results of the univariate analyses (P<0.2). The independent factors related to the prognosis of OS were determined using the multivariate Cox proportional hazards regression model. The CSS is the most relevant indicator, but OS should not be ignored.
The ROC curve was analyzed by determining the as-constructed nomogram performance. The nomogram accuracy was analyzed by Harrell C-index, together with the area under the time-dependent ROC curve (AUC). A greater C-index value indicated the better nomogram performance in predicting the prognosis (17). A calibration curve of the nomograph was drawn to evaluate the consistency between the observed and estimated survivals. To sum up, the nomograms were constructed to predict the survivals for MCC patients at 3 years. We determined the clinical significance of using nomograms by performing decision curve analysis (DCA) (18). In 2008, Vickers extended the application scope of DCA to the analysis of survival data (19). For all analyses, a P value <0.05 indicated statistical significance. Statistical package R (http://www.r-project.org), together with EmpowerStats software (www.empowerstats.com, X&Y Solutions, Inc., Boston, MA) was employed for statistical analysis.
The characteristics of patients
According to patient inclusion as well as exclusion criteria, this study included 3,688 cases in the analyses. Then, all cases were randomized as the training (n=1,844) or the validation (n=1,844) cohort. There was no statistical difference among these cohorts. For all cases, their average age was 74.98 years, with the median survival of 28.00 months. In the present study, we included 2,337 (63.37%) male patients. A majority of patients were white (95.72%) in this study. The classification according to AJCC stages was as follows: stage I, 1,640 patients (44.47%); stage II, 699 patients (18.95%); stage III, 1,103 patients (29.91%); and stage IV, 246 patients (6.67%). With regard to therapy, most of the patients underwent surgery (89.91%) and only 464 patients received chemotherapy (12.58%). A total of 2,010 death cases were reported in the follow-up visits, including 645 cancer-related death cases as well as 1365 competing death cases. Table 1 displayed the clinicopathologic characteristics of all patients. Across the entire study population, the 3-year cancer-specific death rates of AJCC I, II, III and IV stages were 8.15%, 12.29%, 25.36% and 48.17%, respectively; while the corresponding non-cancer-specific death rates were 25.48%, 32.22%, 27.93% and 38.61%. Figure S1 showed related CIF curves and the accumulated non-cancer-specific mortality increased relative to the cancer-specific mortality among cases in addition to AJCC IV stage.
Nomogram establishment and verification in OS prediction

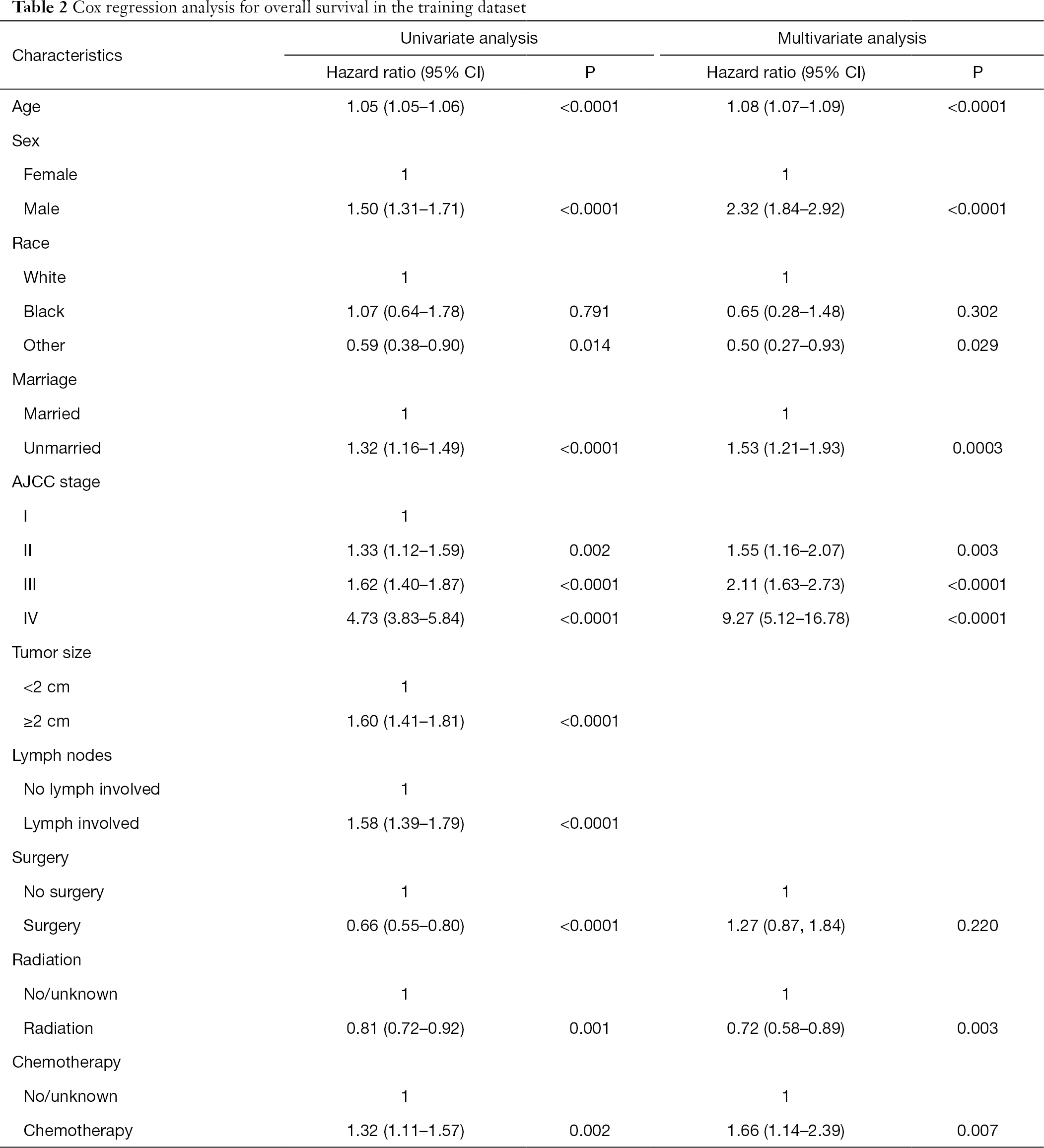

To further determine the independent OS predicting factors, univariate together with multivariate analysis was conducted using the Cox proportional hazard model. According to results of univariate analysis, age, sex, marriage, tumor size, AJCC stage, lymph nodes, radiation, chemotherapy, and surgery were correlated with OS (P<0.05, Table 2). By performing multivariate analysis, we identified seven independent prognostic factors of survival, such as sex, age, marriage, race, AJCC stage, radiotherapy, and chemotherapy (the nomogram is shown in Figure 2). From the nomogram, the age, which scale fell in the range of 0–100, contributed to the OS at 3 years most significantly. To apply the nomogram, drawing a perpendicular line towards the first row identify the value of each independent factors. The summation of the above figures was on the total-point axis, then the survival likelihood was determined by drawing a line down along the survival axis.
The C-index values for the as-constructed OS nomogram model in the training and validation set were 0.708 (95% CI: 0.691–0.725) together with 0.703 (95% CI: 0.686–0.721), respectively, which had superior discriminating effect to those of AJCC stage within the above two sets (0.618, 95% CI: 0.600–0.636) as well as (0.610, 95% CI: 0.592–0.628), respectively (Table 3). The AUC values of the ROC training and validation data predicted that our constructed nomogram had superior OS at 3 years to that of AJCC stage (Figure 3 and Table 3).
Nomogram establishment and verification in CSS prediction
Univariate and multivariate analysis results are displayed in Table 4. Upon univariate analysis, age, sex, tumor size, AJCC stage, chemotherapy, surgery, and lymph nodes were correlated with CSS (P<0.05). Besides, according to Fine and Gray analysis results, the age, sex, chemotherapy and AJCC stage were able to independently predict the prognosis for CSS (Figure 4). These four factors were used to construct the nomogram of CSS. Also, based on our constructed nomogram, the AJCC stage contributed most significantly to CSS (including 3-year).
With regard to the CSS nomogram model established, the C-index value for training set 0.745 (95% CI: 0.719–0.771), while that for validation set was 0.737 (95% CI: 0.710–0.764), which displayed superior discriminating effect to AJCC stage in either training (0.715, 95% CI: 0.688–0.743) or validation (0.700, 95% CI: 0.671–0.730) set, respectively (Table 3). As shown in Figure 3, the AUC values of the training and validation data predicted that our constructed nomogram had superior 3-year CSS to AJCC stage.
Calibration curve of the nomogram
The calibration curves showed that the line of prediction closely approximated the 45-degree line, which presented the estimated survival rates in both training and validation sets at 3 years, respectively. These findings well conformed to the actual result, indicating an excellent agreement between OS and CSS at 3 years (Figures S2,S3).
Finally, DCA was adopted for assessing the nomogram clinical significance (Figures S4,S5). DCA, the integrative approach to estimate and compare nomogram with AJCC stage, can be established through calculating net benefits for diverse threshold likelihoods (20). To calculate net benefit, the false positive proportion was taken away from the true positive proportion, which was then weighted based on the relative hazard of the previous treatment relative to negative outcomes for the redundant treatment (19). Clinicians could decide whether interventions should be taken to the disease according the model whose performance was better.
The mortality rate of MCC is high, and its incidence is growing faster than all solid tumors, even above that of malignant melanoma in the United States since the year 2000 (3). In this study, significant clinical parameters were used for establishing nomograms, which were used for predicting OS and CSS. As discovered on the basis of SEER database, sex, age, marriage, race, radiotherapy, surgery, chemotherapy and AJCC stage were independent factors affecting OS. Moreover, age, sex, chemotherapy and AJCC stage were identified to be the independent parameters affecting CSS. The results of AUC value, C-index, calibration curve, and DCA indicated that the predicted values of our nomograms were better than the AJCC stage.
Agreed well with those of previous study, in our nomograms, both OS and CSS were primarily affected by age and sex (21). Surgical treatment is the primary therapeutic option to treat MCC, especially in the case of primary MCC (22). We showed that surgery does not significantly improve the prognosis in patients. Some recent studies have showed conflicting results between different types of surgical interventions (22). Recurrence rate is up to 36–89% after surgical resection alone (23,24). Further investigations are needed to resolve the affect of surgical interventions on MCC by randomized controlled trials.
Radiotherapy can be used to improve the prognosis of MCC patients. This is because MCC patients have high radiosensitivity (25-27). Radiotherapy is not only used as an alternative to radical surgical resection, but also as an adjuvant after surgery to improve the prognosis of patients (25,28). These findings agreed well with our result that radiotherapy could improve the OS of MCC patients.
Chemotherapy is often used to improve the prognosis of MCC patients with lymph node metastases (28). In our analysis, chemotherapy had negative prognostic impact, reducing the 3-year specific survival rate. This is because most patients were treated with traditional chemotherapy regimens. Currently, the traditional chemotherapy regimen for MCC is derived from small cell lung cancer, and the first-line chemotherapy is mainly etoposide combined with carboplatin or cisplatin (29,30). In addition, chemotherapeutic drugs are cytotoxic, causing pain and relatively high mortality in patients (31). Nevertheless, future clinical trials should continue to explore the role of chemotherapy in MCC patients.
Unmarried status was independent adverse prognostic factors for MCC. Some studies suggest that married person could get more social and economic support (32). In addition, the spousal detection of MCC could promote early diagnosis and treatment in skin tumors (33). However, these prognostic factors were not identified very significantly in the nomograms of OS and CSS at the same time. Furthermore, Kim et al. reported that an improvement in OS was associated with difference or bias in those unmeasured parameters, and the hidden bias might greatly change those results (27).
There are some advantages to our study. Firstly, the SEER database was used in this study, which included a huge American population. Altogether, 3,688 MCC patients complied with the standards, and they were screened out of 6,392 patients. Secondly, many characteristics are included in our analysis, such as demographic characteristics, AJCC stage, and treatment strategies. As a result, our nomograms have good generalizability and do not need to be limited by sex, race, and marriage. Finally, the predictive performance and the accuracy of our nomograms was better than those of AJCC stage. Moreover, our nomograms were tested by ROC analysis, calibration curve, and DCA, to predict the survival of MCC patients.
Our study also has limitations. Firstly, the majority patients from SEER database were white race, so there was potential racial heterogeneity that could not be extrapolated to other human species. Secondly, the variables obtained from SEER database were limited, and there was some important variable information that was not available, including the “No/Unknown” information, type, or extent of treatment and specific doses and drug regimens used. In addition, we did not account for length of time required for staging and treatment, which may lead to immortal time bias. We will collect data from multiple medical centers in different regions and at different levels in the future to optimize and validate the model. Finally, as the pathogenesis of the disease continues to be explored, and new treatment options continue to be improved, such as the application of targeted drugs like PD-1, PD-L1, the prognosis of patients will certainly change. The information data of this nomogram would also need to be updated. Notably, the predicted values were calculated by using only the nomogram, which is a kind of reference information and not an absolutely accurate prognosis.
The nomogram model, which was developed on the SEER database, provides a reliable and practical tool for assessing the OS as well as CSS for MCC, and a variety of independent parameters were integrated for prognosis prediction. Thus, it exhibited better discrimination and calibration than the traditional AJCC stage. However, we need an external validation method for further verifying our findings. If further validated by other studies, nomograms have the potential to become a useful clinical prediction tool for MCC.
The authors would like to thank SEER for open access to the database.
Funding: This work was supported by grants from the China National Natural Science Foundation (82073472), the Priority Academic Program Development (PAPD) of Jiangsu Higher Education Institutions and Outstanding Young and Middle-aged Talents Support Program of the First Affiliated Hospital with Nanjing Medical University (Jiangsu Province Hospital). BZ is funded by the Project of Key Youth Medical Talent of Jiangsu Province (QNNRC 2016583) and Outstanding Young Backbone Teachers of Nanjing Medical University (in 2017).
Reporting Checklist: The authors have completed the TRIPOD reporting checklist. Available at http://dx.doi.org/10.21037/atm-20-4578
Peer Review File: Available at http://dx.doi.org/10.21037/atm-20-4578
Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/atm-20-4578). The authors have no conflicts of interest to declare.
Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). Since individual information has been removed from all the SEER databases, informed consent from patients and approval by the institutional review board were exempted.
Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
