The influence of initial defect morphology of alveolar ridge on volumetric change of grafted bone following guided bone regeneration in the anterior maxilla region: an exploratory retrospective study

Yuan Li, Xiao-Meng Zhang, Shu-Jiao Qian, Shi-Chong Qiao, Hong-Chang Lai, Jun-Yu Shi

Department of Oral and Maxillo-facial Implantology, Shanghai Ninth People’s Hospital, School of Medicine, Shanghai Jiao Tong University, National Clinical Research Center for Oral Diseases, Shanghai Key Laboratory of Stomatology & Shanghai Research Institute of Stomatology, Shanghai, China

Contributions: (I) Conception and design: JY Shi, HC Lai; (II) Administrative support: HC Lai; (III) Provision of study materials or patients: SJ Qian; (IV) Collection and assembly of data: Y Li, XM Zhang; (V) Data analysis and interpretation: SC Qiao; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Jun-Yu Shi; Hong-Chang Lai. Department of Oral and Maxillo-facial Implantology, Shanghai Ninth People’s Hospital, School of Medicine, Shanghai Jiao Tong University, 639 Zhizaoju Road, Shanghai 200011, China. Email: Sjy0511@hotmail.com; lhc9@hotmail.com.

Background: This study aimed to explore the influence of initial ridge defect morphology on the outcome of guided bone regeneration (GBR) in the anterior maxilla region.

Methods: Cone beam computed tomography (CBCT) examinations of patients who participated in a previous randomized controlled trial were used to assess linear and volumetric changes of bone grafts (LCB and VCB) from immediately (T0) to 6 months (T1) after surgery. The three-dimensional (3D) surface rendering of the initial defect was reconstructed, and morphological variables were defined in mesial-distal, buccal-lingual, and coronal-apical directions. The Spearman correlation, logistic regression model, and receiver operating characteristic (ROC) analyses were used to assess the possible association between initial defect morphological variables and VCB.

Results: A total of 62 eligible patients were included in this study. The median value of LCB was less than 20% at different levels, while the corresponding value of VCB was 52.0%. The Spearman correlation analysis showed that the standard deviation of buccal-lingual distance (BLSD) was negatively associated with VCB (r=−0.315, P=0.013), whereas the ratio of maximum coronal-apical/mesial-distal distance (RmCA/mMD) was positively related to VCB (r=0.607, P<0.001). The multivariate regression analysis revealed that the prognosis effect of BLSD (OR: 0.220, 95% CI: 0.074 to 0.655, P=0.0047) and RmCA/mMD (OR: 7.045, 95% CI: 2.361 to 21.024, P=0.0017) remained significant. ROC curve analysis showed that RmCA/mMD could be used to correctly classify VCB in 78.9% patients and BLSD in 71.0% of patients, as classified by the median of VCB. The discrimination value of BLSD and RmCA/mMD revealed the areas under curve (AUC) of 0.71 (95% CI: 0.545 to 0.883) and 0.74 (95% CI: 0.573 to 0.913), respectively.

Conclusions: Within the limitations of this study, the present data confirmed the effect of initial ridge morphology on the GBR outcome in the anterior maxilla region. Specifically, a defect morphology with more BLSD and/or lower RmCA/mMD may significantly decrease the resorption amount of grafted bone.

Keywords: Initial ridge defect morphology; guided bone regeneration (GBR); cone beam computed tomography (CBCT); morphological contour interpolation (MCI)


Submitted Feb 08, 2020. Accepted for publication Sep 14, 2020.

doi: 10.21037/atm-20-1432


Introduction

Prosthetic-driven implant placement is often compromised by insufficient alveolar bone volume. Various methods have been applied to compensate for alveolar bone defects, such as guided bone regeneration (GBR), bone splitting, block bone grafting, and distraction osteogenesis (1-3). Among these methods, GBR is the most well-documented clinical procedure to augment alveolar bone in the localized bone defect (4-6).

As the most widely used method for horizontal bone augmentation, the outcomes of GBR procedures vary in the literature. Several studies demonstrated the mean horizontal bone gain after GBR ranged from 3.0 to 5.0 millimeter (mm) (7,8), while Urban and his colleagues reported that more than 7.0 mm horizontal bone gain could be achieved (9). Several factors, such as barrier membrane, bone substitute, wound closure, and initial defect morphology, are related to the outcomes of GBR procedure (10,11).

Over the past three decades, the influence of barrier membranes and bone substitute on GBR outcome has been well studied (12). The desirable characteristics of barrier membranes utilized for the GBR procedure include biocompatibility, cell occlusion properties, integration by the host tissues, clinical manageability, and space-making ability. Favorable bone substitute requires osteogenic, osteoinductive, and osteoconductive properties. With regard to wound closure, a passive tension flap would benefit wound healing. Some previous studies (13,14) pointed out that some compressive forces during wound closure could result in membrane collapse and displacement of the bone substitute which had a significant impact on the outcome of GBR.

Indeed, initial defect morphology also plays an important role in bone regeneration. Favorable defect morphology could benefit the stability of grafting biomaterials, while unfavorable defect morphology usually requires additional stabilizing accessory, such as a fixture pin or tenting screw. Some clinicians have tried to establish classification systems to define the initial defect morphology and predict the treatment outcomes. So far, several classification systems have been proposed. One classification was established based on the alveolar bone width (Class A: bone width >5 mm, Class B: 2.5 mm < bone width <5 mm, Class C, and D: bone width <2.5 mm) (15). Small to moderate horizontal bone loss of 3 to 6 mm in the horizontal, vertical, and combination (HVC) classification was considered as a good indication for GBR treatment (16). In addition, a recent study reported an ABC classification of alveolar ridge vertical atrophy (17). These classifications indicated implicitly that the ridge morphology may influence the bone augmentation outcome. However, none of these classifications could be quantitatively correlated with the alteration of grafted bone, which meant that information about the prognostic value of initial defect morphology on the GBR outcome was limited.

Cone-beam computerized tomography (CBCT) is widely used for pre-surgical assessment of surgical anatomy and measurement of the healing process of augmented tissue. For pre-surgical assessment, three-dimensional (3D) reconstruction of initial bone defect could be obtained using a mirror image of the unaffected side in the pre-operative image, which was a routine process of the reconstruction of craniomaxillofacial defects (18). For post-operative assessment, only two-dimensional linear measurement or marginal bone loss were used to assess GBR outcome in the majority of studies (19), though a recent study by Tonetti et al. had demonstrated the overall diagnostic accuracy of CBCT was high (20). In our previous study (21), a novel semiautomatic segmentation method has been demonstrated to be highly reliable to segment and reconstruct the grafted bone following GBR. With this method, the volumetric measurement could be achieved, and 3D changes of augmented bone could be visually observed.

Thus, using the 3D analysis method, this study aimed to explore the influence of the initial defect morphology of alveolar ridge on volumetric change of grafted bone following the GBR procedure in the anterior maxilla region. We present the following article in accordance with the STROBE reporting checklist (available at http://dx.doi.org/10.21037/atm-20-1432).


Methods

Study design and population

The present study was designed as an exploratory retrospective study, and the medical data of eligible patients were retrieved from a randomized controlled trial (ChiCTR-IPR-15006885) conducted in the Department of Oral and Maxillo-facial Implantology, Shanghai Ninth People’s Hospital from 2016 to 2018. The study conformed to the provisions of the Declaration of Helsinki (as revised in 2013). The study protocol was approved by the Ethics Committees of Shanghai Ninth People Hospitals [China, No. (2015)48] and informed consent was taken from all the patients.

Inclusion criteria

(I) Patients had single tooth loss in the anterior maxilla for at least 3 months; (II) patients needed implant placement and simultaneous GBR; (III) patients took CBCT examinations immediately and 6 months after surgery; (IV) patients had uneventful healing.

Exclusion criteria

(I) Patients had an obvious vertical bone defect; (II) patients had wound exposure and postoperative infection; (III) heavy smoker (>10/day); (IV) patients had a history of periodontitis.

Surgical procedure

All treatment was operated by an experienced surgeon (HC Lai). Mid-crest incision combined with intra-sulcular and vertical incisions were made under local anesthesia, and a mucoperiosteal flap was raised. Straumann Bone Level SLA implants (Institute Straumann AG, Waldenburg, Switzerland) were placed according to the manufacturer’s instructions. A natural bovine bone matrix composed of hydroxyapatite and collagen (Zhenghai Biotechnology, particle size 0.25–1 mm, Shandong, China) covered with a control membrane (Bio-Gide®, Geistlich AG, Wolhusen, Switzerland) or a test bovine dermis-derived collagen membrane (Zhenghai Biotechnology, Shandong, China) were used to augment the horizontal bone defect. Over-contour protocol was conducted by putting biomaterials beyond the surrounding native bone by 2 mm. The wound was closed with Ethilon 5-0 nylon sutures in a tension-free approach. All patients were prescribed antibiotics for 3 days. The patient was instructed to use chlorhexidine oral rinse (0.12%) for 60 s five to six times a day for 14 days. Sutures were removed 10–14 days after surgery.

CBCT data acquisition

All imaging scans were acquired with a CBCT machine (i-CAT, Imaging Sciences International, Hatfield, PA, USA) in the Department of Radiology, Shanghai Ninth People’s Hospital, Shanghai Jiao Tong University School of Medicine. CBCT examinations were performed immediately after surgery (T0) and 6 months later (T1). The imaging parameters were set at a tube voltage of 120 kV, tube current of 5 mA, voxel resolution of 0.25 mm, and field of view (16 cm diameter/13 cm height) for a scan time of 20 seconds. Data from the scans were saved in the Digital Imaging and Communications in Medicine format.

Outcomes

Two examiners (JY Shi, Y Li) performed all measurements in Medraw® software. Ten randomly selected CBCT images were used to test the intra-observer reliability of CBCT measurements. The intraclass correlation coefficient (ICC) for linear measurement and volumetric measurement was 0.92 and 0.95 (95% CI: 0.90–0.97), respectively, indicating high intra-examiner agreement.

Linear measurement

For each patient, a cross-sectional image at T0 and T1, taken as closely as possible through the implant center, was selected, and saved so that two examiners could perform the measurements on identical slices. The thickness of the facial bone wall (TBW) was measured (in mm) with Image J software at 3 different levels: 2, 4, and 6 mm apical to the implant shoulder. The known implant length was used for post-calibration measurements and the calibration formula was true TBW = (known implant length/measured implant length) × measured TBW. Linear change of bone grafts (LCB) was calculated as TBWT0 − TBWT1/TBWT0 × 100%.

Volumetric measurement

A novel semi-automatic segmentation protocol based on morphological contour interpolation (MCI) algorithm was used to segment the bone graft from surrounding native bone and soft tissue. Our previous study described the details of the novel protocol (21). Briefly, the obtained DICOM files of CBCT images were imported into Medraw® software (Image Medraw Technology Co., Ltd, Shanghai, China). The segmentation procedure mainly consisted of two steps. In the first step, manual drawing was performed to trace the perimeters of the bone graft area on coronal slices without or with few artifacts’ interferences. Manually segmented slices were selected as the input slice of the MCI algorithm. In the second step, maximal inter-region overlaps achieved by heuristic alignment based on the minimal displacement were performed prior to inter-slice interpolation between corresponding regions. Afterward, the iteration of the MCI process automatically computed a transition sequence between a pair of corresponding input slices. 3D surface rendering of bone graft could be visualized in a separate 3D visualization window (Figure 1).

Figure 1 3D surface rendering of bone grafts at T0 (A) and T1 (D) were reconstructed based on original CBCT data. The change of the whole bone grafts could be visible. (B,E) frontal view of bone grafts at T0 and T1; (C,F) lateral view of bone grafts at T0 and T1.

Initial defect morphology definition

The 3D surface rendering of the initial defect was obtained by using a mirror image of the contralateral unaffected alveolar ridge. The following variables were used to define the initial defect morphology of alveolar ridge (Figure 2):

Figure 2 The initial bone defect was reconstructed, and the initial defect morphology was defined on mesial-distal, coronal-apical, and buccal-lingual dimension. (A) Preoperative CBCT reconstruction image; (B) 3D surface rendering of initial bone defect obtained using a mirror image of the contralateral alveolar ridge; (C) 3D surface rendering of initial bone defect was divided into slices in 0.25 mm from mesial to distal (S1, S2 to Sn) at the sagittal plane and from coronal to apical (H1, H2 to Hn) at the horizontal plane. Intersection points of slices in sagittal and horizontal planes were marked on the outer surface of 3D surface rendering; (D) intersection points on the outer surface were projected onto the inner surface. The length of projection lines was considered as the buccal-lingual distance of bone defect.
  • The mesial-distal distance of initial bone defect (MD): After reconstruction, the initial bone defect was divided into slices in 0.25 mm from mesial to distal (S1, S2 to Sn) at the sagittal plane. The number of slices at the sagittal plane (N.S) was counted and the maximum MD value (mMD) was calculated for each patient.
  • The coronal-apical distance of initial bone defect (CA): After reconstruction, the initial bone defect was divided into slices in 0.25 mm from coronal to apical (H1, H2 to Hn) at the horizontal plane. The number of slices at the horizontal plane (N.H) was counted and the maximum CA value (mCA) was calculated for each patient.
  • The buccal-lingual distance of initial bone defect (BL): Intersection points of slices in sagittal and horizontal planes on the outer surface of 3D surface rendering were marked and projected onto the inner surface. The distance of projection lines was recorded, and maximum BL value (mBL), the mean value of BL (BLMean), and the standard deviation of BL (BLSD) were calculated for each patient.

For all the included patients, the following demographic and initial defect morphological data were collected: gender; age; type of membrane; implant site; the mean value of BL (BLMean); BLSD; mCA; mMD; mBL; ratio of mCA/mMD (R mCA/mMD); ratio of mCA/mBL (RmCA/mBL) and ratio of mBL/mMD (R mBL/mMD).

Statistical analysis

Data were analyzed using the statistical software Statistical Package for Social Science (SPSS), version 25 (SPSS, Inc.; IBM Corporation). Categorical variables are expressed as frequencies and percentages. Continuous variables were described as mean ± standard deviation (SD) or medians [interquartile ranges (IQRs)] for non-normal distribution. The normality of distributions was assessed by the Shapiro-Wilk test. The Spearman correlation coefficient was calculated between baseline demographic, initial defect morphological variables, and VCB. Subsequently, patients were classified into two groups according to the median of VCB. The association of baseline demographic, initial defect morphological variables with VCB were assessed in univariate analyses, using the chi-square test for categorical variables, and Student’s t-test or the Mann-Whitney U test for continuous variables, as appropriate. Variables correlated with VCB in univariate analyses (P<0.05) were included in multivariable logistic regression analysis. The corresponding receiver operating characteristic (ROC) analysis was performed and the areas under curve (AUC) were calculated accordingly. Two-sided P values <0.05 was considered as indicative of statistical significance.


Results

Patient characteristics

Data of 62 patients (male: 36, female: 26) between 18 and 42 years of age were eligible to be included in the analysis. Table 1 shows the demographic features of all the patients. After a healing period of 6 months, no events of serious adverse local or systemic effects were observed in any group. All implants were stable at T1 and a second surgery was performed. No implant loss was found by the end of restoration placement.

Table 1
Table 1 Summary of patient characteristics
Full table

Linear changes of bone grafts

Examination of the facial bone wall with CBCT found that all implants had a detectable facial bone wall. In the test group, the median value of TBW at T0 ranged between 2.78 mm (2.06–3.02 mm) and 3.35 mm (2.82–4.30 mm) at 2 mm and 6 mm apical to the platform, while the median value of TBW at T1 ranged between 2.07 mm (1.80–2.51 mm) and 2.67 mm (2.25–3.08 mm) at 2 mm and 6 mm apical to the platform. In the control group, the corresponding value ranged between 2.36 mm (1.98–2.82 mm) and 3.46 mm (2.78–4.17 mm) at T0 and between 1.92 mm (1.45–2.36 mm) and 2.60 mm (1.97–3.21 mm) at T1, respectively (Table 2). The median value of LCB from T0 to T1 for all patients was 18.68% (2.91–36.11%), 19.77% (6.45–28.84%), and 17.24% (4.72–33.33%) at 2, 4, and 6 mm level, respectively. No significant difference was found in LCB at identical measurement levels between the two groups.

Table 2

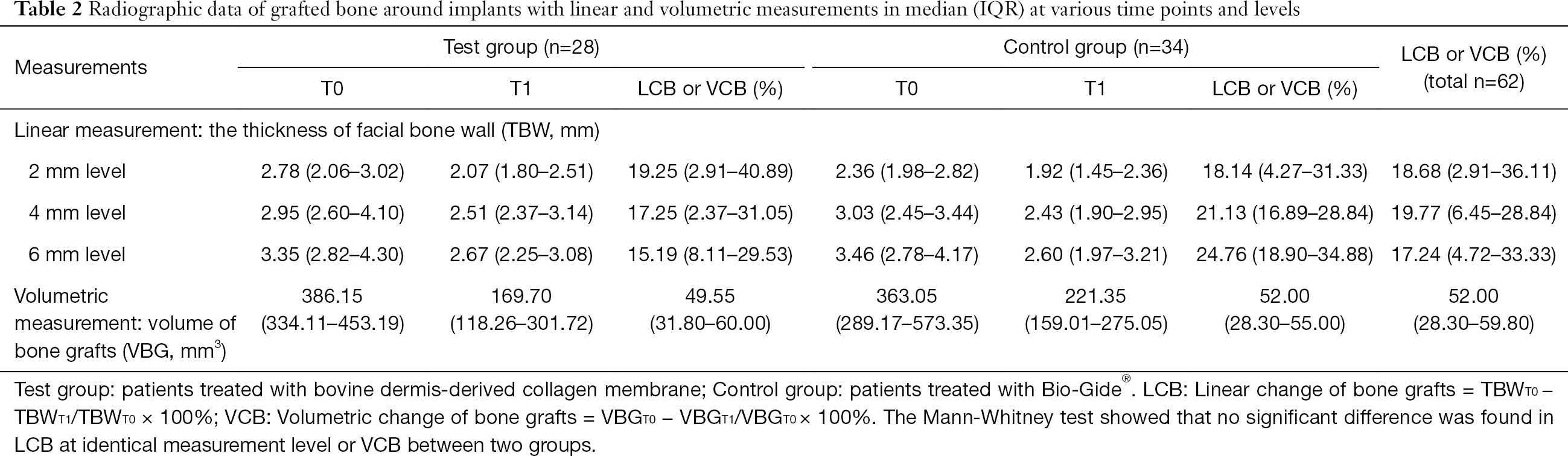

Table 2 Radiographic data of grafted bone around implants with linear and volumetric measurements in median (IQR) at various time points and levels
Full table

Volumetric changes of bone grafts

The median value of VCB for all patients from T0 to T1 was 52.00% (28.30–59.80%). In the test group, the median value of VBG ranged from 386.15 mm3 (334.11–453.19) to 169.70 mm3 (118.26–301.72), while the median value of VBG ranged from 363.05 mm3 (289.17–573.35) to 221.35 mm3 (159.01–275.05) in the control group. No significant difference was found in VCB between the two groups (Table 2).

Correlation analysis of morphological parameters with VCB

Analysis of correlation by Spearman correlation test was shown in Table 3. Gender, age, type of membrane and implant site were not significantly correlated with VCB (P>0.05). All initial bone defect morphology-related variables except RmBL/mMD were correlated with VCB. mCA and RmCA/mMD and RmCA/mBL were positively related to VCB (r=0.274, P=0.031; r=0.607, P<0.001; r=0.497, P<0.001, respectively), whereas mMD, mBL, BLMean and BLSD were negatively associated with VCB (r=−0.425, P<0.001; r=−0.380, P=0.002; r=−0.280, P=0.027; r=−0.315, P=0.013, respectively).

Table 3
Table 3 Spearman correlation coefficients for the predictive variables and bone graft resorption rate for the total sample
Full table

Univariate and multivariate analysis of morphological variables with VCB

The variables correlated with VCB were compared in patients classified according to the median value of VCB: <52.00% group and ≥52.00% group. Differences in these variables were recorded in both groups (Table 4).

Table 4
Table 4 Baseline demographic and initial defect morphological variables are classified according to the median of VCB
Full table

As expected, univariate analysis showed that BLMean, BLSD, mMD, and mBL were significantly higher in the VCB <52.00% group than in the VCB ≥52.00% group (P<0.05). RmCA/mMD and RmCA/mBL were significantly lower in the VCB <52.00% group than in the VCB ≥52.00% group (P<0.05). No significant differences were found in age, gender, type of membrane, mCA, and RmBL/mMD between the two groups. For implant site, implant in canine was removed from univariate analysis due to the small sample size. Implant in lateral incisor was higher in the VCB <52.00% group than in the VCB ≥52.00% group (16 vs. 6), but did not reach statistical significance.

In multivariate regression analysis including six variables: BLMean, BLSD, mMD, mBL and RmCA/mMD, RmCA/mBL, only the prognosis effect of BLSD (OR: 0.220, 95% CI: 0.074 to 0.655, P=0.0047) and RmCA/mMD (OR: 7.045, 95% CI: 2.361 to 21.024, P=0.0017) remained significant.

The potential relevance of morphological variables in the stratification of VCB

To evaluate the performance of a selected morphological variable as a predictor of GBR outcome, ROC analysis for BLSD and RmCA/mMD, two of the primary differentiator variables of patients stratified according to the median of VCB (52.00%) categories. ROC curve analysis showed that RmCA/mMD could be used to correctly classify VCB in 78.9% patients and BLSD in 71% of patients, as classified by the median of VCB (≥52.00% or <52.00%). As shown in Figure 3, the prognostic accuracy of BLSD had an AUC of 0.71 (95% CI: 0.545 to 0.883), with sensitivity of 0.67 and specificity of 0.75. The ROC curve obtained using RmCA/mMD had an AUC of 0.74 (95% CI: 0.573 to 0.913), with sensitivity of 0.83 and specificity of 0.75.

Figure 3 Morphological variables for prediction of VCB. Receiver-operating characteristic curve (ROC) analysis as assessed according to the median of VCB (≥52.00% or <52.00%). VCB, volumetric change of bone grafts; AUC, areas under curve.

Discussion

The present study aimed to investigate the influence of the initial defect morphology of alveolar ridge on GBR outcomes around dental implants. The major finding of the study was two defined variables of initial defect morphology: standard deviation of buccal-lingual distance (BLSD) and ratio of maximum coronal-apical/mesial-distal distance (RmCA/mMD) could be considered as morphological variables in predicting GBR outcome. As the results of ROC curve analysis, RmCA/mMD could be used to correctly classify VCB in 78.9% and BLSD in 71% of patients according to the classification by median of VCB (≥52.00% or <52.00%).

It had been suggested that bone defect morphology could influence the regenerative outcome. It may affect the depth of the vestibule, flap tension, and subsequent wound stability after the closure of the wound. However, various influence factors can affect the GBR outcome. Thus, in this study, all patients were treated with the same bone substitute because it was found to be the compounding factor on the GBR outcome. Furthermore, all patients have received a delayed implant placement with simultaneous GBR for horizontal bone augmentation.

In this study, the GBR outcome was evaluated based on both linear and volumetric measurements of grafted bone in CBCT images. The results of linear measurements showed an acceptable outcome with over 2 mm facial bone thickness which achieved the goal of GBR procedures with peri-implant buccal bone thickness ≥1.8 to 2 mm (22,23). However, the results of volumetric measurements revealed the median VCB from T0 to T1 was 52.00% (28.30–59.80%). Linear measurements only assessed the resorption rate in the mid-facial plane, while 3D volumetric measurements evaluated the resorption rate of the entire region of grafted bone. This might be the possible reason for the “unsatisfying” results of VCB.

Indeed, assessment of the entire area of grafted bone allowed an intuitive observation of morphological change of grafted bone. As shown in Figure 1, bone grafts were absorbed significantly in areas away from the alveolar crest region, but the part near the alveolar crest could be retained. Soft tissue pressure and the absence of additional stabilization of barrier membrane may be the possible reasons for this result.

Our result revealed a significant negative relationship between BLSD and VCB. BL represented the buccal-lingual depth, while BLSD represented the deviation degree of buccal-lingual depth at different sites in the bone defect. That is, the larger the value, the greater the buccal-lingual concavity of defect. It was speculated that this type of deep defect allowed the barrier membrane to better create and maintain the space for bone regeneration. This was in accordance with previous studies that reported greater bone gain when the concavity angle of initial ridge defect increased (24,25). Additionally, Tonetti et al. also demonstrated that the more contained the defect, the better the guided tissue regeneration outcome (26). This is because a better space maintenance of the barrier membrane results in a smaller risk of the barrier membrane collapsing into the defect.

Our results also showed that a significant positive relationship between RmCA/mMD and VCB. The positive correlation indicated that the more mCA or the less mMD, the greater amount of bone resorption during the healing period. Intra-marrow penetration provides angiogenesis and undifferentiated mesenchymal cells that are essential for GBR (27). Bone defects in the anterior region with a greater value of mMD (mesial-distal distance) may allow more undifferentiated mesenchymal cells derived from the parent bone to repopulate the osseous wound space which may benefit GBR outcome. It was speculated that the significant reduction in bone gain was due to unfavorable space maintenance of barrier membrane at sites with a greater coronal-apical defect. It is worth mentioning that a fixture pin or other additional stabilizing accessory was not used in the GBR procedure for stabilization of the barrier membrane in all cases in this study. Thus, bone augmentation at sites with greater mCA may lead to higher soft tissue pressure in the augmented area and further increase the risk of the barrier membrane collapsing into the defect.

Another important result arising from this study was the fact that VCB was not affected by the type of membrane. It was because only two kinds of membranes were involved in this study, and the sample size included in this study was limited. Therefore, this result should be interpreted with caution since the membrane had a decisive influence on GBR outcome (28). In this study, age and gender were not significantly associated with VCB which was in accordance with the results of the previous study (29). In addition, implant in the lateral incisor was higher in the VCB <52.00% group than in the VCB ≥52.00% group (16 vs. 6) though did not reach a significant difference. This may indicate that the implant site could influence the GBR outcome and further study with a large sample size would be needed.

The 3D surface rendering of the initial defect was obtained by using a mirror image of the contralateral alveolar ridge. The model could be used as a reliable model in imitating the initial ridge defect morphology which was attributed to the mature mirror technique. The method was wildly used to reconstruct symmetrically the cranio-maxillofacial defect reconstruction such as mandible, condyle, and orbit (18). It is worth mentioning that object axes were defined on the basis of anatomical landmarks selected by examiners before the mirror process. The coordinate system built in the software may lead to mirror-image confusion since involuntary patient movements during the CBCT scan could result in the midline of the coordinate system was not accordance with the midline of the patient’s face.

Some limitations should be identified in this study. Firstly, the sample size and follow-up of the present study were limited. In addition, internal and external validation with a larger cohort will be needed to support the selected morphological variables for a positive prognosis.


Conclusions

Within the limitations of this study, the present data confirmed the effect of initial ridge morphology on the GBR outcome in the anterior maxilla region. Specifically, a defect morphology with more BLSD and/or lower RmCA/mMD may significantly decrease the amount of grafted bone resorption.


Acknowledgments

All authors wish to acknowledge Zhang Xiao for advice on statistical interpretation.

Funding: This work was financially supported by the Shanghai Clinical Research Center for Oral Diseases (19411950100) and the Multicenter Clinical Research Program of Shanghai Jiao Tong University School of Medicine (DLY201822).


Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at http://dx.doi.org/10.21037/atm-20-1432

Data Sharing Statement: Available at http://dx.doi.org/10.21037/atm-20-1432

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/atm-20-1432). JYS served as an unpaid Section Editor of Annals of Translational Medicine from October 2019 to September 2020. The authors have no other conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study conformed to the provisions of the Declaration of Helsinki (as revised in 2013). The study protocol was approved by the Ethics Committees of Shanghai Ninth People Hospitals (China, No. (2015)48], and written informed consent was obtained from the patient for publication of this study and any accompanying images.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
