Development of a prognostic signature for bladder cancer based on immune-related genes

Ying-Rui Shi1,2, Kun Xiong2, Xu Ye1, Pei Yang1, Zheng Wu1, Xiong-Bing Zu2

1Department of Radiation Oncology, Hunan Cancer Hospital & the Affiliated Cancer Hospital of Xiangya School of Medicine, Central South University, Changsha, China; 2Department of Urology, Xiangya Hospital, Central South University, Changsha, China

Contributions: (I) Conception and design: YR Shi, K Xiong, XB Zu; (II) Administrative support: YR Shi, K Xiong, P Yang, Z Wu; (III) Provision of study materials or patients: YR Shi, K Xiong, P Yang, XB Zu; (IV) Collection and assembly of data: YR Shi, K Xiong, Z Wu; (V) Data analysis and interpretation: YR Shi, K Xiong, X Ye, XB Zu; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Xiong-Bing Zu. Department of Urology, Xiangya Hospital, Central South University, Changsha 410008, China. Email:

Background: Although the prognosis of patients with bladder cancer (BC) has improved significantly with the use of multimodal therapy, reliable prognostic biomarkers are still urgently needed due to the heterogeneity of tumors. Our aim was to develop an individualized immune-related gene pair (IRGP) signature that could precisely predict prognosis in BC patients.

Methods: Gene expression profiles and corresponding clinical information were collected from eight microarray data sets and one RNA-Seq data set.

Results: Among 1,811 immune genes, a 30-IRGP signature consisting of 52 unique genes was generated in the training cohort, which significantly stratified patients into low- and high-risk groups in terms of overall survival. In the testing and validation cohorts, the IRGP signature was also associated with patient prognosis in the univariate and multivariate Cox regression analyses. Several biological processes, including the immune response, chemotaxis, and the inflammatory response, were enriched among genes in the IRGP signature. When the signature was integrated with the TNM stage, an IRGP nomogram was developed and showed improved prognostic accuracy relative to the IRGP signature alone.

Conclusions: In short, we identified a robust IRGP signature for estimating overall survival in BC patients that could also be used as a promising biomarker for identifying high-risk patients for individualized therapy.

Keywords: Bladder cancer (BC); immune-related gene pair signature; prognostic biomarker; nomogram

Submitted Jan 30, 2020. Accepted for publication Sep 14, 2020.

doi: 10.21037/atm-20-1102


Bladder cancer (BC) is the 9th most common cancer in the United States, with 17,240 estimated new deaths per year (1). In the past 30 years, the prognosis of BC patients has been poor because the diagnosis is often late, and treatment has barely progressed (2). Moreover, patients with the same clinical or pathological stage experience different clinical outcomes, even if patients receive very similar treatments. The genetic heterogeneity of patients contributes the most to their inherent clinical diversity (3). Thus, in the era of precision medicine, molecular biomarkers are urgently needed to estimate prognosis in BC patients and guide precise treatment (4,5).

In the genomics era, molecular biomarkers that can reliably predict patient survival would have important value in the management of several cancers, including BC (6-9). Numerous studies have generated multiple gene expression-based prognostic signatures for patient survival stratification in BC (9,10). However, due to problems such as excessive fitting in the training set and a lack of sufficient validation, none of them have been incorporated into routine clinical practice. Currently, public, and large-scale gene expression data sets are easy to obtain and can provide an opportunity to identify potentially reliable biomarkers for BC patients. However, the diversity of data also represents a daunting challenge. Gene expression levels sequenced by traditional approaches require suitable normalization, which is difficult considering biological heterogeneity and technical biases across microarray and sequencing platforms. Instead, researchers have developed new methods to eliminate the limitations to data processing, such as normalization and scaling based on the relative ranking of gene expression levels, and produced robust results in various studies.

Some components of the immune system have proven to be key factors in the onset and progression of cancer (11-13). The immune checkpoints strictly control immune function to maintain self-tolerance and minimize tissue destruction when an immune response occurs in the surrounding tissues (13-15). Several immune checkpoints have been identified and developed into therapeutic targets for numerous cancers. Recent immunotherapies for immune checkpoints, such as programmed death-1 or programmed death ligand 1, have shown a remarkable, durable response in BC (15-18). Recent emerging evidence has demonstrated that multiple immune gene-based prognostic signatures are potential biomarkers that can estimate overall survival in patients with colorectal, ovarian, and lung cancers (13,19,20). Thus, the immune system-associated gene-based prognostic signature is promising for use in BC. Regarding their prognostic potential in BC, the molecular characteristics of tumor immune interactions remain to be extensively studied.

In our study, to eliminate the requirement for data normalization, using the gene pair method to rank the gene expression levels of microarray and RNA-Seq data sets, we developed and validated a robust and personalized immune prognostic signature. Moreover, to better leverage the complementary role of clinical and molecular markers, a composite prognostic nomogram was constructed by combining the individualized immune-related gene pair (IRGP) signature with the TNM stage, which thus improved the prognostic accuracy for patients with BC.


Public datasets and study design

Our study analyzed gene expression in bladder tumor tissue samples obtained from public datasets (Figure 1, Table 1). In total, nine studies were selected, including eight microarray datasets and one RNA-Seq data set. The microarray data and corresponding clinical information were downloaded from the Gene Expression Omnibus (GEO) ( and normalized with the robust multiarray average (RMA) method, and bias effects across batches were corrected using the Combat method (21). The Cancer Genome Atlas (TCGA) bladder Carcinoma RNA-Seq data set and clinical information were downloaded from the Cancer Genomics Browser ( in March 2019. We excluded patients who had received neoadjuvant therapy or other pharmaceutical treatments that may affect the immune system response. In addition, only patients with available and valid survival information were enrolled in all studies. In total, 1,013 patients were included in our study (Table 1). All the microarray datasets were merged as a meta-data set, which was then randomly divided into training and testing datasets according to an approximate 1:1 ratio. No further normalization methods were needed for merging different datasets. The TCGA data set was used as a validation cohort to evaluate the robustness of the IRGP model. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Figure 1 Identification of the prognostic immune-related gene signature for BC. Study flow of the prognostic analysis of immune genes, signature construction and validation. IRGPs, immune-related gene pairs; TCGA, The Cancer Genome Atlas.
Table 1
Table 1 Details about the GEO and TCGA data sets used in our study
Full table

Identification of BC-specific IRGPs and construction of the prognostic immune signature

We focused on immune-related genes (IRGs) to construct a prognostic immune gene signature. A total of 1,811 unique IRGs were downloaded from the ImmPort database (22) ( accessed on March 30th, 2019. These IRGs can be classified into 17 categories, including the B cell antigen receptor signaling pathway, the T cell receptor signaling pathway, natural killer cell cytotoxicity, antigen processing and presentation pathways, and cytokines or cytokine receptors. Only the IRGs measured by all platforms in any data set were selected. Pairwise comparison was conducted for the gene expression level in a specific sample to compute a score for each IRGP. If IRG 1 was less than IRG 2, the output score was 1, while the IRGP score was 0 for the others. After removing IRGPs with constant values (0 or 1, which indicates almost no changes among patients) in any individual data set, the remaining IRGPs were selected as initial candidate IRGPs for the prognostic analysis. The development of a prognostic immune signature was conducted as described previously (13,19). From the initial candidate IRGPs, an IRGP signature was generated using least absolute shrinkage and selection operator (LASSO) Cox proportional hazards regression, and 30 immune gene pairs were used to construct the final prognostic immune model. We determined the optimal cutoff value of the IRGP signature to stratify patients into low- and high-risk groups using a receiver operating characteristic (ROC) curve at 5 years in the training cohort for overall survival. A nearest neighbor estimation method was used to estimate the time-dependent ROC curve. The shortest distance in the ROC curve was used to define the optimal cutoff value. We used CIBERSORT to analyze the infiltration of immune cells in different risk groups.

Validation of the IRGP signature

The prognostic value of the IRGP signature was assessed in the training, testing and independent validation cohorts by the log-rank test. Moreover, we then combined the IRGP signature with the TNM stage in the multivariate analysis. The TNM stage was treated as a continuous variable. Stage I was replaced with 1; stage II was replaced with 2; stage III was replaced with 3; and stage IV was replaced with 4. Patients with T4a and Nx were considered 3.5. When no pathological TNM stage was available, we used the clinical TNM stage instead. The prognostic performance of the IRGP signature was evaluated using the concordance index (C-index), calibration, and decision curve analysis.

Construction and validation of an IRGP nomogram

We integrated the TNM stage and the IRGP signature risk score to develop an IRGP nomogram using Cox proportional hazards regression in the training cohort. The prognostic efficiency of the IRGP nomogram was compared with the C-index of the IRGP signature and depicted by the restricted mean survival (RMS) curve, which indicates the life expectancy of BC patients with different risk scores at 10 years.

Functional enrichment analysis

GO annotation ( and KEGG signaling pathway were set up using the Database for Annotation, Visualization, and Integrated Discovery (DAVID) ( bioinformatics tool (23,24).

Statistical analysis

In this study, we performed all statistical analyses using R software (version 3.5.1; Continuous variables were compared using Student’s t-tests or Wilcoxon rank-sum tests. Survival analyses were performed using the Kaplan-Meier method and compared using a log-rank test with the ‘survival’ package. Univariate and multivariate Cox regression analyses were conducted for the IRGP signature and the TNM stage. Time-dependent ROC curve analysis, LASSO Cox regression analysis with 10-fold cross-validation, and nomogram and decision curve analyses were estimated using R packages (survivalROC, glmnet, rms, and DecisionCurve). The C-index was calculated with the R package survcomp and compared with the R package compareC. Unless otherwise stated, statistical significance was set as a P value <0.05.


Discovery of prognostic IRGPs and construction of the IRGP signature

In total, 1,013 patients with BC were enrolled in our study, and the detailed study design is depicted in Figure 1. To enrich the sample number for model development, we combined all the datasets from the GEO, which were obtained from the public website. A total of 610 BC patients with available survival information derived from the GEO were included and then randomly divided into a training cohort (n=292) and a testing cohort (n=318) (Table 1). Among the 1,811 immune-related genes (IRGs) obtained from the ImmPort database, 561 IRGs were detected in all platforms, and 157,080 immune-related gene pairs (IRGPs) were generated. After removing IRGPs with relatively small variation (median absolute deviation =0) in any data set, 44,385 candidate IRGPs were left to further analyze the association between each IRGP and overall survival in BC patients. The clinical characteristics of patients in the training and testing cohorts were well balanced (Table 2). We assessed the association of the candidate IRGPs with overall survival and found 791 prognostic IRGPs with a familywise error rate less than 0.05. Using LASSO Cox regression and 10-fold cross-validation, we then developed a thirty-IRGP signature including 52 IRGs based on the training data set (Figure 2). The 52 different IRGs among the IRGP signature participate in many immune processes, mainly including antimicrobials and cytokines (Table 3). The optimal cutoff value for the IRGP signature was −0.031, which was calculated using time-dependent ROC curve analysis, and stratified BC patients into the low- or high-risk group (Figure 2C). The risk scores of the patients are illustrated in Figure 3, which show the overall survival distribution among different risk groups (Figure 3A,B). The heat map shown in Figure 3C represents the expression levels of the 30 selected gene pairs in the low- and high-risk groups.

Table 2
Table 2 Clinical characteristics of all patients from training, testing and validation cohorts
Full table
Table 3
Table 3 Model information about IRGPs signature
Full table
Figure 2 Development of the IRGP signature with the LASSO method. (A) LASSO algorithms were used to generate prognosis-related IRGPs, and the remaining 30 IRGPs were selected in the training cohort. (B) Coefficient profiles of the 30 prognosis-related IRGPs were plotted based on the datasets obtained from the training cohort. (C) Time-dependent ROC curve for IRGPs signature in the training data set at 5 years. (D) GO analysis revealed that the 52 immune genes related to the IRGP signature in the training cohort are mostly involved in immune biological processes, such as the immune response, chemotaxis, and the inflammatory response. GO functional and pathway analyses of the prognostic immune signature were performed using the DAVID tool. LASSO, least absolute shrinkage, and selection operator. An FDR-adjusted P value <0.05 was used to screen significant genes for GO. GO, gene ontology; IRGPs, immune-related gene pairs; FDR, false discovery rate.
Figure 3 The distribution of risk scores in patients based on the 30-IRGP classifier. The risk score of each patient increases gradually with survival time (A,B). Heat map analysis of the 30 selected IRGPs among the low- and high-risk groups (C). An ROC curve was used to calculate the optimum cutoff score for our prognostic model, and BC patients were then classified into low- and high-risk subgroups. IRGPs, immune-related gene pairs. Kaplan-Meier curves of overall survival for BC patients stratified by the IRGP signature risk groups in the (D) training, (E) testing, and (F) validation cohorts. P values were measured using the log-rank test. IRGPs, immune-related gene pairs.

Functional analysis of the IRGP signature

To obtain biological information on the IRGP signature, we carried out an enrichment analysis of the 52 unique IRGs with the DAVID tool. The biological processes of gene ontology with a false discovery rate (FDR) value less than 0.05 were selected, and eight overrepresented biological processes in gene ontology were identified (Figure 2D). Most biological processes were the immune response, chemotaxis, and the inflammatory response. To determine the immune function of the obtained risk groups, we conducted an immune infiltration analysis in the GEO and TCGA datasets using CIBERSORT, which is a popular algorithm describing cell composition from the gene expression profiles of bulk tumors, and found that the percentages of macrophages (M0/M1), activated mast cells and neutrophil infiltration were significantly different between risk groups in the IRGP signature (Figure 4). The mean level of macrophages in the IRGPI high-risk group was 2-fold higher than that in the IRGPI low-risk group in each data set. Patients with a higher IRGPI also had significantly lower B cell naive infiltration in their tumors. However, no statistically significant difference in T cell infiltration was observed between the 2 IRGPI risk groups in the different datasets.

Figure 4 Immune infiltration status of the IRGP signature risk groups. Twenty-two immune cell abundances within each risk group of the training (A), testing (B), and validation (C) cohorts. Macrophages (M0/M1) and activated mast cells were enriched in the high-risk group, while naive/memory B cells and neutrophils were enriched in the low-risk group. In all bar plots, P values were based on the Wilcoxon test. IRGPs, immune-related gene pairs.

Validation of the prognostic value of the IRGP signature

Based on the defined risk groups, we found that the IRGP signature was significantly associated with overall survival [Figure 3D; HR, 10.91 (6.76–17.60); P=2.0×10−16] in the training cohort. To evaluate whether the IRGP signature had similar prognostic value in different populations, we applied the same formula to the testing and validation cohorts. As expected, the IRGP signature significantly stratified patients in terms of overall survival [Figure 3E; HR, 2.99 (1.92–4.64); P=3.0×10−7] in the testing data set. In the TCGA validation cohort, patients in the high-risk group experienced significantly worse overall survival than patients in the low-risk group [Figure 3F; HR, 4.75 (2.10–10.75); P=4.0×10−5)].

Developing an integrated prognostic nomogram by combining the IRGP signature with clinical features

To further evaluate whether the IRGP signature could serve as an independent prognostic factor, univariate and multivariate Cox regression analyses were conducted. In the training cohort, both the univariate and multivariate analyses revealed that the TNM stage and the IRGP signature were significantly associated with overall survival (Table 4). To further improve the predictive accuracy, based on the above results, we developed an IRGP nomogram that combined the TNM stage and the IRGP signature (Figure 5, Table 4). The risk scores of the IRGP nomogram were calculated as (0.378 × stage) + (2.089 × IRGP signature). We calculated the optimal cutoff value of 1.012 based on time-dependent ROC curve analysis in the training set, which was used to divide patients into different prognosis groups. The estimation accuracy of overall survival was enhanced by the continuous form of the IRGP nomogram relative to the IRGP signature (Figure 6, mean C-index, 0.82 vs. 0.79 in the training cohort). In addition, the calibration curves for 5-year overall survival performed well in the training, testing and validation cohorts (Figure 5B,C,D). After a decision curve analysis was conducted for the IRGP nomogram, we also found the model’s clinical application value (Figure 5E,F,G). The results showed that the IRGP nomogram added more net benefit in the testing data set if the threshold probability was between 0% and 92%, while in the training and validation datasets, decision-making based on the IRGP nomogram could add more net benefit than the treating all patients or none scheme if the threshold probability was between 0% and 80%. In summary, our constructed IRGP nomogram is clinically useful for BC patients and may tailor the current treatment strategy.

Table 4
Table 4 Univariate and multivariate analyses of prognostic factors in terms of overall survival
Full table

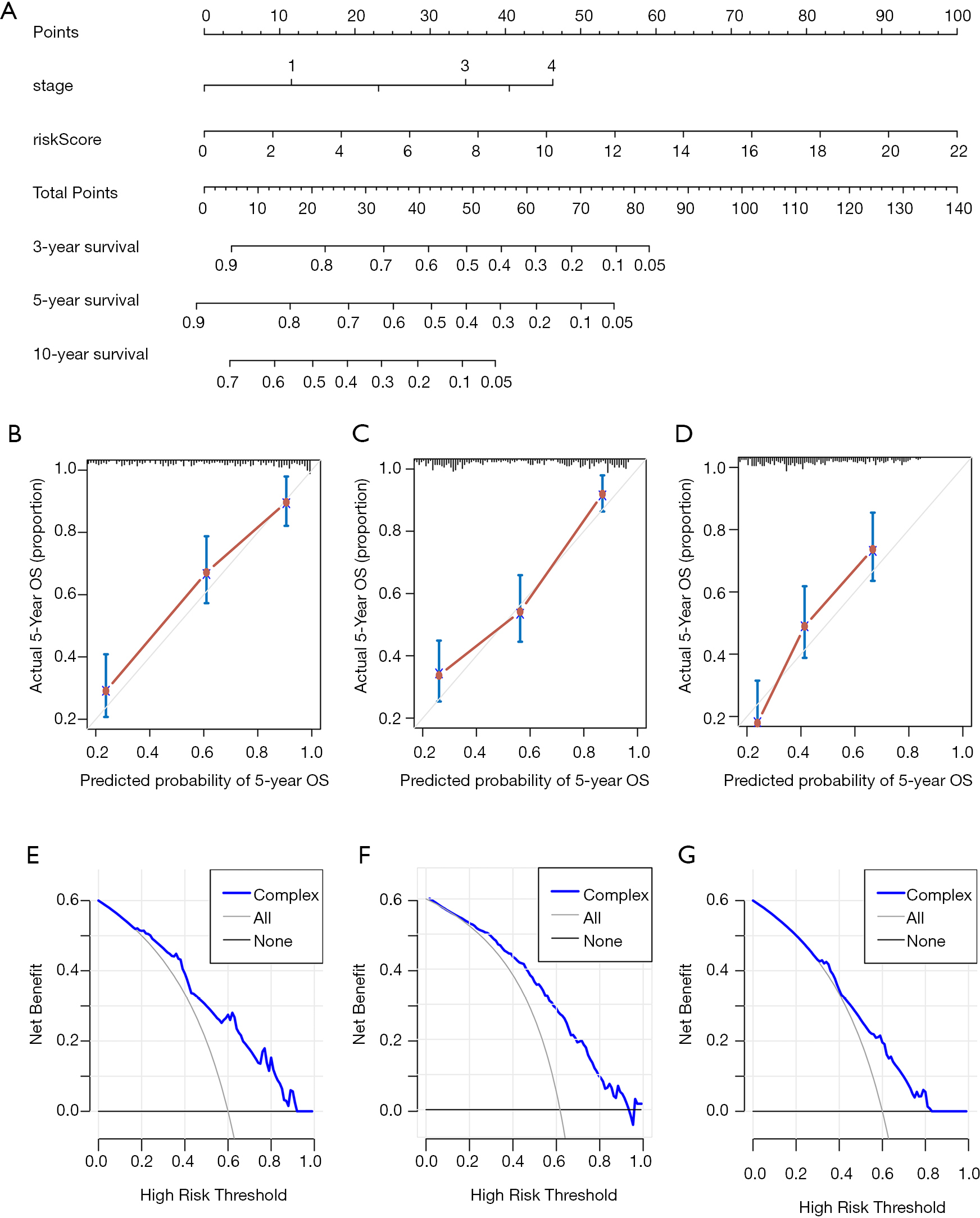

Figure 5 The IRGPs nomogram was developed for BC patients. (A) IRGPs nomogram was generated to predict patients’ prognosis, with the TNM stage and IRGPs signature incorporated. Calibration curve of IRGPs nomogram were showed in the training (B), testing (C), and validation (D) cohorts, respectively. IRGPs, Immune-related gene pairs. Decision curve analysis of our constructed IRGPs nomogram model in the training (E), testing (F) and validation (G) sets. Solid black line: net benefit when all BC patients are considered as not having the death event; Solid gray line: net benefit when all patients are considered as having the death event. Solid blue line: net benefit when all patients are considered according to the developed nomogram model. If the threshold probability is between 0–80% in any cohort, decision making based on the nomogram model to predict death will add more benefit. IRGPs, Immune-related gene pairs.
Figure 6 RMS curves for the continuous signature and nomogram values in the three cohorts. The RMS curves of the IRGP signature and nomogram scores were plotted for the (A) training, (B) testing, and (C) validation datasets. Each point represents the RMS time of the corresponding IRGP signature and nomogram scores. The RMS curves show a larger slope in all datasets with the IRGP nomogram, indicating the superior estimation of overall survival with the IRGP nomogram. RMS, restricted mean survival; IRGPs, immune related gene pairs.


Patients with BC are at substantial risk for recurrence and metastasis within 5 years after diagnosis (25). The TNM staging system is a common method used to predict the efficacy of systemic therapy and patient survival (26). However, the prognosis of patients at the same stage varies greatly regardless of whether the treatment is similar, which may be due to individual genetic differences (9,10,19). Hitherto, researchers have demonstrated that certain gene expression signatures can estimate survival in BC patients; however, none have been translated into clinical practice (9,10). One common disadvantage of all current experiments is the normalization of gene expression profiles that may produce inherent technical biases across different microarray or RNA-Seq platforms (19).

To screen and develop robust molecular biomarkers in BC, we used a gene pair method that can overcome inherent technological biases between different platforms. Our prognostic immune signature was constructed based on the relative rank of gene expression values involving only a single tumor sample, and data standardization was not needed. Therefore, our prognostic signature may assess patient prognosis in an individualized, single-sample form without reference to other samples and would then be easily adopted clinically. Based on 30 prognostic-associated IRGPs, our developed immune signature reflects distinct biological processes that could function as a marker for estimating patient prognosis in BC. The prognostic immune signature associated with the immuno-microenvironment of tumors may reveal a new prospect for novel predictive biomarker development and improve the efficacy of BC patients in the era of precision medicine. Our developed IRGP signature can stratify patients into low- and high-risk subgroups based on different overall survival rates. In addition, we combined the IRGP signature with the TNM stage, which is currently being used for the staging classification of most cancers, and found that the integrated IRGP nomogram may propose a more accurate estimation of overall survival in BC patients.

Cancer immunotherapy has made great breakthroughs, and IRGs may hold great prospects for identifying new molecular targets (12,27-31). Most genes included in our IRGP signature were antimicrobials and cytokines, which play key roles in the immune response, chemotaxis, and the inflammatory response. Previous studies have shown that adjuvant antimicrobial agents can kill oncogenic-related microorganisms and exert antiproliferative and cytotoxic effects (32-35). Moreover, we found significantly increased infiltration levels of macrophages (M0/M1) and activated mast cells in the immune high-risk group, which were validated in the testing and validation datasets. Based on the results of the current study, immune cell subgroups may play a role in the observed prognostic differences between risk groups defined by our immune signature. The immune genes involved in the IRGP signature have a strong biological background, making it possible for them to be used to guide clinical adjuvant treatment in the future.

Our study still has some limitations. First, the retrospective nature and inherent intratumor genetic heterogeneity in our study may influence the estimation accuracy, although a large number of samples were included for broader validation. Second, our established immune gene signature is based on gene expression produced by microarray and RNA-seq platforms. Due to the high detection costs and expert requirement for bioinformatics analysis, it is difficult to widely generalize the signature in clinical applications. Thus, we need more data from different platforms to validate our developed immune signature.


In summary, our constructed IRGP signature could be used as a potential prognostic biomarker in BC. We also found a positive correlation between the signature and the infiltration of immune cell subsets, such as the immune response, macrophages (M0/M1), and activated mast cells. In the era of immunotherapy, it is necessary to conduct prospective studies to further evaluate the accuracy of predictions and test their clinical application in personalized treatment for BC.


We thank the TCGA and GEO Research Network and the involved patients. We apologize for any omission of citations and references due to space limitation.

Funding: Our study was funded by Fundamental Research Funds for the Central Universities of Central South University (grant/award number: 2016zzts121), National Natural Science Foundation of China (grant/award numbers: 81700665, 81572523), and Hunan Province Funds for Distinguished Young Scientists of China (grant/award number: 2016JJ1026).


Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See:
