Machine learning-based CT radiomics method for predicting hospital stay in patients with pneumonia associated with SARS-CoV-2 infection: a multicenter study
Original Article

Machine learning-based CT radiomics method for predicting hospital stay in patients with pneumonia associated with SARS-CoV-2 infection: a multicenter study

Hongmei Yue1,2,3#, Qian Yu4#, Chuan Liu5#, Yifei Huang5#, Zicheng Jiang6, Chuxiao Shao7, Hongguang Zhang8, Baoyi Ma9, Yuancheng Wang4, Guanghang Xie5, Haijun Zhang1, Xiaoguo Li1, Ning Kang1, Xiangpan Meng4, Shan Huang4, Dan Xu1, Junqiang Lei1, Huihong Huang6, Jie Yang7, Jiansong Ji7, Hongqiu Pan8, Shengqiang Zou8, Shenghong Ju4, Xiaolong Qi1

1CHESS-COVID-19 Group, CHESS Center, 2Department of Respiratory Medicine, 3Department of Pulmonary and Critical Care Medicine, The First Hospital of Lanzhou University, Lanzhou, China; 4Department of Radiology, Jiangsu Key Laboratory of Molecular and Functional Imaging, Zhongda Hospital, Medical School, Southeast University, Nanjing, China; 5Department of Gastroenterology, Zhujiang Hospital, Southern Medical University, Guangzhou, China; 6CHESS-COVID-19 Group, Ankang Central Hospital, Ankang, China; 7CHESS-COVID-19 Group, Zhejiang University Lishui Hospital & Lishui Central Hospital, Lishui, China; 8Department of Infectious Diseases and Critical Care Medicine, The Affiliated Third Hospital of Jiangsu University, Zhenjiang, China; 9Department of Respiratory Medicine, The People’s Hospital of Linxia Hui Prefecture, Linxia, China

Contributions: (I) Conception and design: X Qi, S Ju; (II) Administrative support: X Qi, H Yue, Z Jiang, C Shao, H Zhang, B Ma; (III) Provision of study materials or patients: H Yue, Z Jiang, C Shao, H Zhang, B Ma, D Xu, J Lei, H Huang, J Yang, J Ji, H Pan, S Zou; (IV) Collection and assembly of data: Y Huang, C Liu, G Xie, H Zhang, X Li, N Kang; (V) Data analysis and interpretation: Q Yu, Y Wang, X Meng, S Huang; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

#These authors contributed equally to this work.

Correspondence to: Shenghong Ju, MD. Professor of Medicine, Department of Radiology, Zhongda Hospital, Medical School of Southeast University, Nanjing, China. Email: jsh0836@126.com; Xiaolong Qi, MD. Professor of Medicine, CHESS-COVID-19 Group, CHESS Center, The First Hospital of Lanzhou University, Lanzhou, China. Email: qixiaolong@vip.163.com.

Background: The coronavirus disease 2019 (COVID-19) has become a global challenge since the December 2019. The hospital stay is one of the prognostic indicators, and its predicting model based on CT radiomics features is important for assessing the patients’ clinical outcome. The study aimed to develop and test machine learning-based CT radiomics models for predicting hospital stay in patients with COVID-19 pneumonia.

Methods: This retrospective, multicenter study enrolled patients with laboratory-confirmed SARS-CoV-2 infection and their initial CT images from 5 designated hospitals in Ankang, Lishui, Lanzhou, Linxia, and Zhenjiang between January 23, 2020 and February 8, 2020. Patients were classified into short-term (≤10 days) and long-term hospital stay (>10 days). CT radiomics models based on logistic regression (LR) and random forest (RF) were developed on features from pneumonia lesions in first four centers. The predictive performance was evaluated in fifth center (test dataset) on lung lobe- and patients-level.

Results: A total of 52 patients were enrolled from designated hospitals. As of February 20, 21 patients remained in hospital or with non-findings in CT were excluded. Therefore, 31 patients with 72 lesion segments were included in analysis. The CT radiomics models based on 6 second-order features were effective in discriminating short- and long-term hospital stay in patients with COVID-19 pneumonia, with areas under the curves of 0.97 (95% CI, 0.83–1.0) and 0.92 (95% CI, 0.67–1.0) by LR and RF, respectively, in test. The LR and RF model showed a sensitivity and specificity of 1.0 and 0.89, 0.75 and 1.0 in test respectively. As of February 28, a prospective cohort of six discharged patients were all correctly recognized as long-term stay using RF and LR models.

Conclusions: The machine learning-based CT radiomics features and models showed feasibility and accuracy for predicting hospital stay in patients with COVID-19 pneumonia.

Keywords: Coronavirus disease 2019 (COVID-19); patient discharge; CT; prognosis; machine learning


Submitted Mar 31, 2020. Accepted for publication Jun 19, 2020.

doi: 10.21037/atm-20-3026


Introduction

The coronavirus disease 2019 (COVID-19) has become a global challenge since the December 2019 (1-3). Clinical characteristics of patients with severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) infection have been reported, and the median hospital stay of forty-seven discharged patients was 10 days (1). Studies showed that patients’ condition in Wuhan worsens on the 10th day after illness onset (2). However, patients with symptoms longer than 10 days outside Wuhan were less severe than those in Wuhan (3). Therefore, the hospital stay in patients with SARS-CoV-2 infection is one of the prognostic indicators, and its non-invasive predicting tool is important for assessing the patients’ clinical outcome.

Chest CT is recommended as a routine test in the diagnoses and monitoring of COVID-19 since ground-glass opacities and consolidation are the most relative imaging features in pneumonia associated with SARS-CoV-2 infection (4-6). On the basis of our previous work utilizing quantitative CT for COVID-19 (7), we hypothesized that high-throughput information hidden behind CT images (8) had potential in discriminating the hospital stay. The study aimed to develop and test machine learning-based CT radiomics models for predicting hospital stay in patients with pneumonia associated with SARS-CoV-2 infection. We present the following article in accordance with the STROBE reporting checklist (available at http://dx.doi.org/10.21037/atm-20-3026).


Methods

Study population

This retrospective, multicenter study was conducted according to principles of the Declaration of Helsinki (as revised in 2013) and approved by the ethics commissions of The First Hospital of Lanzhou University (LDYYLL2020-15). The need for written informed consent from the participants was waived. The patient’s personal data have been secured.

Patients with laboratory-confirmed SARS-CoV-2 infection and their initial CT images were enrolled from five designated hospitals between January 23, 2020 and February 8, 2020, with final follow-up on February 20, 2020 (Figure 1). Most patients received antiviral treatment with interferon inhalation, lopinavir and ritonavir, combined with probiotics. Patients were discharged once the results of two real-time fluorescence polymerase-chain-reaction tests taken 24 hours apart were negative for SARS-CoV-2 antigens. Patients without pneumonia findings or those remained in hospital were excluded. Sample size consideration was shown in Supplementary. In this study, the optimal cut-off value of hospital stay was determined to be 10 days based on previous studies (1-3), by which patients were classified into short-term hospital stay (≤10 days) and long-term hospital stay (>10 days).

Figure 1 Flow chart of study population and model building. PCC, Pearson correlation coefficient; LR, logistic regression; RF, random forest.

CT radiomics features and model building

The pipeline of radiomics model was shown (Figure 1), and features extraction and model building were performed on lung lobe-level. CT examinations followed routine non-contrast chest CT scan protocols in each institution. Details of CT scan and images preprocessing was shown in Supplementary: Methods. Images containing lesions were segmented using Python (3.6, https://www.python.org) and 3Dslicer (version 4.10.0; https://www.slicer.org/) with two steps. First, lung lobes of each patient were segmented automatically using algorithms based on U-net (9), and results were checked and modified by one radiologist (QY). Next, lesions in each lung lobe were labeled semi-automatically using serval seeds placed within lesion region to generate the contours. Three experienced radiologists (SH, YW and XM) evaluated segments of each lesion and reached a consensus. All imaging processes were blinded to clinical data.

In total, 1,218 features were calculated per lesion patch. First-order, shape and second-order features were extracted from original images and wavelet filter applied images using pyradiomics (10). Two supervised learning algorithms, logistic regression (LR) and random forest (RF), were used to build the model and verify the robustness of features (Supplementary: Methods) (11). We applied 5-fold cross-validation on the training dataset to prove model performance.

Model performance

The cutoff point was defined on receiver operating characteristic (ROC) curves of training data by maximizing the sum of sensitivity and specificity. The model performance was evaluated using test dataset on lung lobe-level. Areas under the ROC curve (AUC), sensitivities, specificities, positive predictive value (PPV), and negative predictive value (NPV) were recorded. On patient-level, one was defined as long-term hospital stay once more than one lesion of lung lobe was labeled as long-term stay lesion, if not, as short-term hospital stay.

Statistical analysis

Categorical data were expressed in numbers (percentages), and continuous variables as median (interquartile range). Demographic and clinical characteristics of patients were assessed using Chi square test (Fisher’s exact test as appropriate) for categorical variables, and Mann-Whitney test for continuous variables in SPSS (version 22.0. IBM Crop. Armonk, NY, USA). Feature selection and model building were implemented with FeAture Explorer (FAE, v0.2.5, https://github.com/salan668/FAE) on Python (3.6). Test values like AUCs [95% confidence interval (95% CI)], sensitivity, specificity was calculated in SPSS and Python. A P value <0.05 was considered statistically significant.


Results

Patient characteristics

A total of 52 patients with laboratory-confirmed SARS-CoV-2 infection and initial CT images were enrolled from five designated hospitals in Ankang, Lishui, Zhenjiang, Lanzhou, and Linxia, China. As of February 20, 14 patients were still hospitalized, and 7 patients had non-findings in CT images. Therefore, 31 patients with 72 lesion segments were included in the final analysis. The training and inter-validation cohort comprised 26 patients (12 from Ankang, 8 from Lishui, 4 from Lanzhou, and 2 from Linxia) with 59 lesion segments, and test cohort comprised 5 patients from Zhenjiang with 13 lesion segments. The median age was 38.00 (interquartile range, 26.00–47.00) years and 17 (55%) were male. Comorbidities, symptoms and laboratory findings at admission were summarized in Table 1.

Table 1
Table 1 Baseline characteristics
Full table

Performance of CT radiomics model

The CT radiomics model, based on 6 features (Table S1), showed the highest AUC on the training and inter-validation dataset. The performance of modeling using LR and RF methods was shown in Figure 2. On lung lobe-level, models using LR method significantly distinguished short- and long-term hospital stay [cut-off value 0.31, in test dataset, AUC 0.97 (95% CI, 0.83–1.0), sensitivity 1.0, specificity 0.89, NPV 1.0, and PPV 0.8]. Besides, models using RF method obtained satisfied results [cut-off value 0.68, in test dataset, AUC 0.92 (95% CI, 0.67–1.0), sensitivity 0.75, specificity 1.0, NPV 0.9, and PPV 1.0].

Table S1

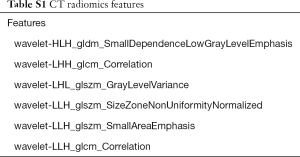

Table S1 CT radiomics features
Full table

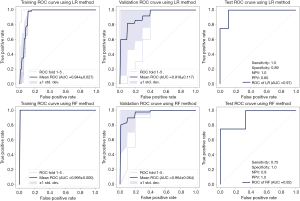

Figure 2 The predictive performance of CT radiomics models in training, inter-validation and test datasets. ROC, receiver operating characteristic; AUC, areas under the ROC curves; LR, logistic regression; RF, random forest; PPV, positive predictive value; NPV, negative predictive value.

On patients-level, in training and inter-validation datasets, 6 of 6 patients were correctly classified as short-term stay by both models, and 20 of 20, 16 of 20 patients were correctly identified as long-term stay by RF and LR models, respectively. In test dataset, one of two patients were correctly classified as short-term stay, and three of three were correctly identified as long-term stay by RF and LR models.

As of February 28, we followed up for a prospective dataset of six newly discharged patients with 24 lesions from designated hospitals (comorbidities, symptoms and laboratory findings were described in Table S2). All patients were correctly recognized as long-term stay using both RF and LR models developed on raw 52 patients.

Table S2

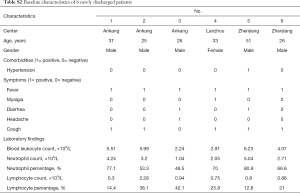

Table S2 Baseline characteristics of 6 newly discharged patients
Full table

Discussion

In this study, machine learning-based CT radiomics models were developed and tested for predicting hospital stay in patients with pneumonia associated with SARS-CoV-2 infection. CT radiomics features hidden within lesions, ground-glass opacities and consolidation, were extracted, and demonstrated robust performance in building machine learning models using multicenter cohorts for training, and independent cohorts for test.

To the best of our knowledge, the present study is the first to investigate the correlation between high throughput CT features and prognosis of patients with pneumonia associated with SARS-CoV-2 infection, by developing and testing machine-learning models in an independent test cohort and a prospective cohort. The present study demonstrated the potential of radiomics features from CT as an imaging biomarker in predicting patient’s prognosis. We believe that CT features and models in this study could predict hospital stay in patients with COVID-19 pneumonia using initial CT scan and patients identified as long-term hospital stay should be paid more attention to avoid worse condition in course.

Though there were differences in CT scan parameters among centers, key features included in models were second-order, and focused on distribution, correlation and variance in gray level intensities, which described the relationship between voxels and hold quantitative information on the spatial heterogeneity of pneumonia lesions (11,12). Compared with first-order features, second-order features were not sensitive to absolute value and thus more robust. Moreover, the models showed satisfied AUCs more than 90% on both training and independent and prospective test process, which indicated that the models could be applied in a general situation. Similarity in AUCs, sensitivity and specificity for RF and LR models also demonstrated the robustness, according to prior study that classification method showed most dominant in variability of model (11).

The study was limited by small sample size. The percentage of short-term hospital stay is low in our multicenter cohorts, and semi-automated lesion segmentation might result in selection bias. A larger prospective multicenter cohort is needed to tune and test the machine learning-based CT radiomics models.


Conclusions

The machine learning-based CT radiomics features and methods showed feasibility and accuracy for predicting hospital stay in patients with pneumonia associated with SARS-CoV-2 infection.


Supplementary

Methods

Sample size consideration

The training and inter-validation cohort comprised 26 patients (12 from Ankang, 8 from Lishui, 4 from Lanzhou, and 2 from Linxia) with 59 lesion segments, and test cohort comprised 5 patients from Zhenjiang with 13 lesion segments. The test dataset was not used during model development.

In training, to balance the case-to-noncase ratio as 1:1, we used SMOTE method to up-sample the short-term hospital stay cases, which is a re-sampling technique commonly used in datasets. We applied 5-fold cross-validation on training dataset to prove model performance. We applied normalization on the feature matrix, and each vector had a zero center and unit standard deviation. Pearson correlation coefficient (PCC) of the feature pair was used to reduce feature space dimensionality. Relief was used to select the most outcome-related features. Six features were selected after PCC and relief, which making an event-per-predictor ratio >15 (95 cases after smote vs. 6 features) (13). Therefore, we believed that there was no big concern on the overfitting issue of our model at this sample size.

Image preprocessing

All CT followed routine chest CT scan protocols in each institution. Patients from Ankang were imaged with 1.25 mm slice thickness/120 kV CT from GE Medical Systems, Milwaukee, WI; patients from Lanzhou were imaged with 1 mm slice thickness/120 kV CT from Siemens Healthineers, Erlangen, Germany; patients from Zhenjiang were imaged with 1.5 mm slice thickness/120 kV CT from Siemens Healthineers, Erlangen, Germany; patients from Lishui were imaged with 3 mm slice thickness/120 kV CT from Siemens Healthineers, Erlangen, Germany; patients from Linxia were imaged with 2 mm slice thickness/120 kV CT from Siemens Healthineers, Erlangen, Germany.

Before feature extraction, all images would be resampled into isotropic voxels of unit dimension to ensure comparability, where 1 voxel corresponds to 1 mm. Image normalization was performed by centering it at the mean with standard deviation and remapping the histogram to fit within µ ± 3σ (µ: mean gray-level; σ: gray-level standard deviation).

RF and LR classifier

Logistic regression is a linear classifier that combines all the features. A hyper-plane was searched in the high dimension to separate the samples.

Random forest is an ensemble learning method which combining multiple decision trees at different subset of the training data set. Random forest is an effective method to avoid over-fitting.
