Protease activated receptor 4: a backup receptor or a dark horse as a target in antiplatelet therapy?

Xu Han, Marvin T. Nieman

Department of Pharmacology, Case Western Reserve University, Cleveland, OH, USA

Correspondence to: Marvin T. Nieman. Department of Pharmacology, Case Western Reserve University, Cleveland, OH, USA. Email: mxn83@case.edu.

Provenance: This is a Guest Editorial commissioned by Section Editor Hongcheng Zhu, MD, PhD (Department of Radiation Oncology, Fudan University Shanghai Cancer Center, Shanghai, China).

Comment on: Wong PC, Seiffert D, Bird JE, et al. Blockade of protease-activated receptor-4 (PAR4) provides robust antithrombotic activity with low bleeding. Sci Transl Med 2017;9. pii: eaaf5294.


Submitted Oct 23, 2017. Accepted for publication Nov 20, 2017.

doi: 10.21037/atm.2017.11.36


Platelets are the primary component of pathological arterial thrombi. As such, antiplatelet therapy is a key strategy for treatment of acute coronary syndrome (ACS). The recent publication by Wong and colleagues earlier this year reported a compound, BMS-986120, that targets protease activated receptor 4 (PAR4) in a reversible manner (1). BMS-986120 effectively inhibits thrombus formation with minimal bleeding complications in their animal model (1). Their paper demonstrates the potential of targeting PAR4 as a promising antiplatelet therapeutic approach (1).


Platelet activation

To achieve the delicate balance between maintaining free flow of blood and, when necessary, platelet aggregation at the site of damage, platelet activation and aggregation needs to be precisely regulated. This requires accurate coordination of many molecules and processes. Once an injury breaks the endothelium, the A1 domain of the von Willebrand factor binds to the ligand binding domain of the GPIbα in GPIb-IX-V complex on the surface of the platelet in order to slow down and to facilitate platelet adhesion (2). This “handshake” between the rapid moving platelet and relatively still blood vessel also generates a shear force that is between 10–20 pN (3). This force is strong enough to unfold the mechanosensory domain of the GPIbα, which induces GPIb signaling in platelets through the PI3K-Src pathway (Figure 1A) (2). Meanwhile, collagen also binds to one of its receptors, Glycoprotein VI (GPVI)-FcRγ, to recruit LAT as an adaptor protein to induce downstream signaling (4). Both GPIb and GPVI signaling can activate phospholipase Cγ (PLCγ) mediated granule release, to form unstable plug (4). Damaged endothelium results in exposure of collagen and tissue factor, which initiates thrombin generation (5). Activation of platelets by thrombin results in platelet granule release increasing the local concentration of ADP and thromboxane A2 (TxA2) around the injury site for further platelet activation (5). These agonists signal through series G-protein coupled receptors (GPCRs) on the surface of the platelet, including protease activated receptor 1 and 4 (PAR1 and PAR4) (thrombin receptors), P2Y1 and P2Y12 (ADP receptors), and thromboxane receptor (TP) (4). These platelet GPCRs couple to multiple G-proteins (Gq, G12/13, Gi and Gs) to facilitate platelet activation and thus accelerate thrombus formation (Figure 1A) (4,6). This several highly-coordinated series of events between GPIb, GPVI and GPCR signaling provides potential therapeutic targets to prevent unwanted clots.

Figure 1 Platelet activation and current anti-platelet therapeutic strategies. (A) Schematic demonstration of the major signaling pathways involved in platelet adhesion and activation. The primary receptors on the surface of the platelet, GPCRs (PARs, P2Ys, and TP), GPVI and the GPIb-XI-V complex are essential for activating second messengers that lead to shape change and granule secretion; (B) the drugs and experimental compounds that have been developed targeting the key receptors on the surface of platelets are shown. GPCR, G-protein coupled receptor; PAR, protease activated receptor; TP, thromboxane receptor; GPVI, Glycoprotein VI.

Current platelet therapies

The current antiplatelet agents can be divided into three general categories based on their mechanism of action (Figure 1B). The first category is comprised of compounds that target platelet signaling pathways and include irreversible cyclooxygenase (COX) inhibitors, phosphodiesterase (PDE) inhibitors, and adenosine reuptake inhibitors. Aspirin is one of the most commonly prescribed antiplatelet therapies for extended intervention. Its mechanism of action is covalent acetylation of COX thereby irreversibly decreasing the generation of TxA2 in platelets (7). Cilostazol (brand name Pletal) is a prodrug whose metabolites inhibit cAMP PDE III (8). Cilostazol increases the concentration of cAMP to inhibit platelet aggregation by blocking the degradation of cAMP in the cytosol of platelets (8). The adenosine reuptake inhibitor, dipyridamole (brand name Persantine), prevents platelet aggregation through the similar mechanism of action (9). Several therapeutics, such as Integrin αIIbβ3 (also known as Glycoprotein IIb/IIIa, GPIIb/IIIa) inhibitors, fall into the second category that target platelet adhesion. The αIIbβ3 inhibitor abciximab (brand name ReoPro) is a Fab fragment of the human monoclonal antibody 7E3 that binds to αIIbβ3 to block its interaction with fibrinogen and vWF for essential platelet adhesion (10). Abciximab can only be administrated intravenously, which limits its use to hospital setting. Small molecules can also be used to block integrin signaling. Tirofiban (brand name Aggrastat) is a reversible non-peptide antagonist of αIIbβ3 (10). Unfortunately, αIIbβ3 is the primary adhesion molecule, whose inhibition leads to bleeding complications. The third category of antiplatelet compounds is receptor inhibitors, such as ADP receptor and PAR1 antagonists. There are two types of P2Y12 antagonist: thienopyridines (clopidogrel and prasugrel) and the nonthienopyridines (ticagrelor and cangrelor). All of these compounds, except ticagrelor, are irreversible antagonists of P2Y12, which can make patient management challenging. In addition, clopidogrel is a prodrug that needs to be metabolized by several CYP450 enzymes, such as CYP2C19, to generate the active metabolites (11,12). Polymorphisms of CYP2C19 (e.g., 681G to A) impairs the metabolism of clopidogrel; these patients are non-responders (12). Nevertheless, clopidogrel is still the first-line ADP receptor inhibitor that is normally prescribed together with aspirin routinely as the standard of care unless patients show a high risk of bleeding. The first PAR1 antagonist, vorapaxar (brand name Zontivity) was approved by FDA in 2014 (13). However, this is not widely used clinically due to its pharmacodynamic profile leading to increased bleeding risk. Despite its practical difficulties, co-administration of both aspirin and a P2Y12 antagonist is the standard of care antiplatelet therapy for ACS. Since there are individuals who do not respond to this therapeutic approach, developing novel targets is still necessary. The publication by Wong et al., earlier this year highlighted the possibility of targeting the second thrombin receptor, PAR4, as a safe and effective antiplatelet therapy (1).


Dual-receptor system for thrombin signaling on human platelet

Thrombin is the most potent platelet agonist in vivo and signals through two GPCRs on the surface of human platelets, PAR1 and PAR4 (14). Thrombin activates these receptors by cleaving the N-terminus of PAR1 and PAR4 to unmask their tethered ligands, which interact with their binding pocket at extracellular side (Figure 2A) (15). In platelets, PAR1 and PAR4 couple to Gq and G12/13. The G-protein activation further promotes platelet shape change and granule secretion (16). At first glance, the dual-receptor system may appear to be an evolutionary redundant. However, PAR1 and PAR4 have functional differences that are complementary and both are essential for platelet activation (17). PAR1 can be activated by low thrombin concentrations to induce a rapid and transient calcium flux that is rapidly desensitized (18). PAR1 mainly contributes to unstable platelet aggregation (18). PAR4, on the other hand, requires a higher concentration of thrombin to be activated and initiates sustained calcium signaling, which makes it essential for stable plug generation (18). Moreover, the sustained signaling from PAR4 induces Rap1 activation, which further triggers the integrin αIIbβ3 inside-out signaling (16,19) (Figure 2A).

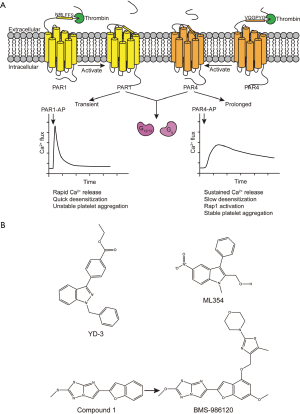

Figure 2 Comparison of PAR1 and PAR4 signaling in platelets and the chemical structures of four PAR4 antagonists. (A) PAR1 and PAR4 have overlapping and unique roles in platelet activation. These two GPCRs couple to the same G-proteins, however with distinct kinetics, which has important physiological consequence; (B) chemical structures of the four compounds that have PAR4 antagonism effect. PAR, protease activated receptor; GPCR, G-protein coupled receptor.

Targeting PAR4 therapeutically

PAR4 has received little consideration as a target for antiplatelet therapy. Most attention to date has focused on PAR1. As discussed above, PAR1 responds to low concentration of thrombin and PAR4 has long been thought of as a backup, or in some cases, an unnecessary receptor. However, an interesting hypothesis is that PAR4 inhibition may, in fact, be safer and more effective given its signaling kinetics. Blocking the sustained signaling from PAR4 may prevent unwanted stable thrombus growth, while leaving PAR1 transient signaling to preserve initial thrombus formation.

The few efforts to block PAR4 have focused on inhibitory antibodies, intracellular peptides, and small molecules. In the context of small molecules, the indazole core structure shows promising PAR4 antagonism activity. This chemical scaffold was used in discovery of YD-3 and its derivatives (Figure 2B, top panel). 1-benzyl-3-(ethoxycarbonylphenyl)-indazole (YD-3) was the first non-peptide PAR4 antagonist (20). It selectively inhibits washed human platelet aggregation induced by GYPGKF (IC50 =130 nM) in a competitive manner but only has a limited inhibitory effect on aggregation induced by thrombin, SFLLRN, collagen or U46619 (20). YD-3 inhibits thrombin-induced activation more significantly when PAR1 is desensitized (21). This agent selectively inhibits PAR4-induced platelet activation across species (20,21). However, the data from mouse and rabbit experiments need to be interpreted with caution because the platelet PAR expression profile across species is different. The research groups of Hamm and Lindsley are also developing PAR4 antagonist by library screening and organic chemistry optimization to achieve compounds with better drug metabolism and pharmacokinetics (DMPK) profiles (22-24). One of their agents, ML354, was discovered with an IC50 of 140 nM and a selectivity for PAR4 over PAR1 (22-24). Unfortunately, neither of these two compounds has been approved for any clinical trial. Currently, both ML354 and YD-3 still serve as experimental tools in research field to facilitate further characterization of PAR4.


BMS-986120

In early 2017, Wong et al. reported a reversible PAR4 antagonist, BMS-986120 (BMS) that selectively binds to PAR4 as a potent and highly efficacious antithrombotic reagent (1). In their paper published in Science Translational Medicine, Wong et al. performed a high-throughput screening of 1.1 million compounds from the Bristol-Myers-Squibb (BMS) library using a PAR4 activation peptide (PAR4-AP)-induced calcium signaling as a read out. This screen resulted in the discovery of imidazothiadiazole compound 1 (Figure 2B, bottom panel). Optimization of this lead compound led to BMS-986120, which has better oral bioavailability with higher potency and selectivity (1). Preliminary in vitro experiments determined that BMS-986120 has high binding affinity to PAR4 expressed on HEK293 cells and inhibition of PAR4-induced calcium mobilization with an IC50 of 0.56 nM (1). Further studies showed that it selectively inhibits multiple signaling events downstream of PAR4 and does not have agonist activity (1). With these promising results on cell lines, they next turned their attention to human platelets. BMS-986120 blocked human platelet activation in PRP by γ-thrombin and PAR4-AP with an IC50 <10 nM. The selectivity of BMS-986120 for PAR4 over PAR1 was confirmed in calcium signaling studies using washed platelets stimulated with α-thrombin. In these experiments, the calcium profile was the same as platelets stimulated with PAR1-AP indicating no cross reactivity of BMS-986120 with PAR1.

Pharmacological characterization of BMS-986120 showed specific, saturable and reversible binding to PAR4. In order to facilitate in vivo studies, they determined that it also binds to monkey PAR4 with a high affinity. This is in contrast to other species where there is a weak effect on mouse platelets, and no effect on guinea pig or rat platelet aggregation induced by PAR4-AP. The most striking data in the paper is that BMS-986120 was able to reduce thrombus weight by >80% in the nonhuman primate thrombosis model while at the same concentration (1 mg/kg) it only increased bleeding 2-fold. In contrast, the concentration of clopidogrel that achieved >80% reduction in thrombus weight led to >8-fold increase in bleeding. This demonstrates in a nonhuman primate model a lower bleeding risk and a significantly wider therapeutic window compared to the first line antiplatelet therapy, clopidogrel.

The study from Wong et al. is original and stunning. First, BMS demonstrates a potential for being the first FDA-approved antiplatelet compound specifically targeting PAR4. The compound completed two phase I clinical trials in 2015 and 2016 respectively in UK (NCT02439190) and is currently in phase II clinical trial for thrombosis which will provide more information about its safety and comparison with current standard antiplatelet therapeutics. Second, and more generally, this study highlighted the importance of PAR4 in platelet aggregation and provided a strong proof of targeting PAR4 as a novel clinical antithrombotic strategy. Third, this paper not only highlighted the side effect of current standard antiplatelet therapeutics which is the extension of bleeding time and potential hemorrhage, but also provided three key features to improve the safety clinically. One important feature is reversible binding to the target. Compared to irreversible antagonists, such as clopidogrel and aspirin, the reversible antagonist does not inhibit affected platelets throughout their lifetime and takes less time to be removed from the circulation. Another characteristic that may increase safety is inhibition of PAR4 reactivity and maintaining PAR1 function unaffected. This strategy may preserve initial hemostasis while avoiding uncontrolled thrombus growth, which may be beneficial for as a means to prevent thrombosis with minimized bleeding risk. The last critical feature is the high selectivity to the target receptor. The off-target binding to PAR1 of some compounds that have PAR4 antagonism effect could be deadly since thrombin-induced platelet activation is essential for primary platelet activation. Finally, regardless of the results from the clinical trial, BMS-986120 will be a useful tool for the thrombosis field to expand understanding of PAR4 structure and function. Using vorapaxar to stabilize the conformation of the protein, the crystal structure of vorapaxar/PAR1 was solved in 2012 (25), which provided valuable information about PAR1 overall architecture and ligand binding mechanism. Getting inspired by this, BMS-986120 can also facilitate and promote elucidation of PAR4 structure.


Acknowledgements

Funding: This study was supported by National Institutes of Health Grant R01 HL098217.


Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.
